Z-Axis V109AM053 9 In CRT monitor upgrade

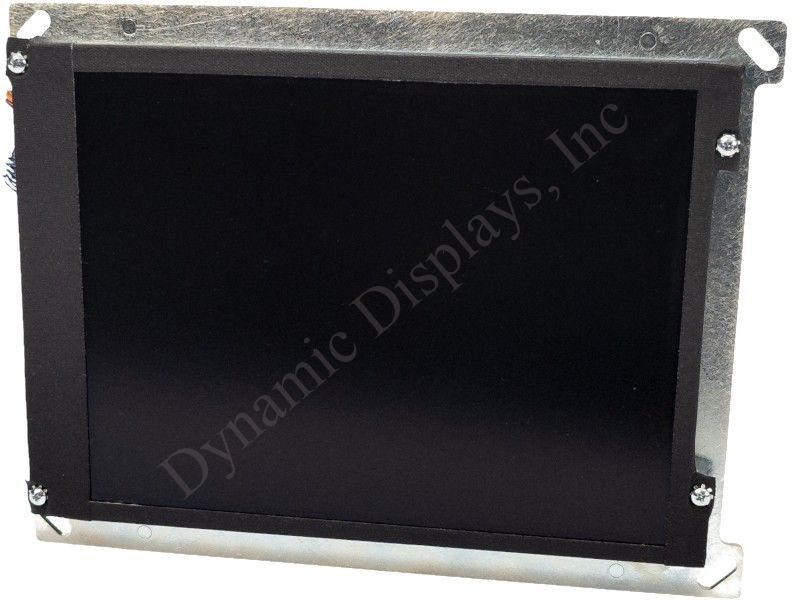

Model QES1508-106 8.4-inch LCD replaces Z-Axis V109AM053 9″ monochrome (green) CRT monitors in Dynapath Delta 20 CNC Controls.
Model QES1508-106 8.4-inch LCD replaces Z-Axis V109AM053 9" monochrome (green) CRT monitors in Dynapath Delta 20 CNC Controls.
When the Z-Axis V109AM053 9" monochrome CRT monitor in your Dynapath CNC Control needs replacing, why not try something new? Why bother with used or re-furbished equipment with limited 30 or 90-day warranties? Why gamble on products purchased from Ebay, with unknown manufacturers and chancy warranties? Instead, when you need to replace the Z-Axis V109AM053 9" green-phosphor CRT monitor in your Dynapath CNC Controls, please consider Dynamic Displays' Model QES1508-106. This 8.4-inch LCD is a direct replacement for the Z-Axis V109AM053 9" green-phosphor CRT monitors in Dynapath CNC Controls.

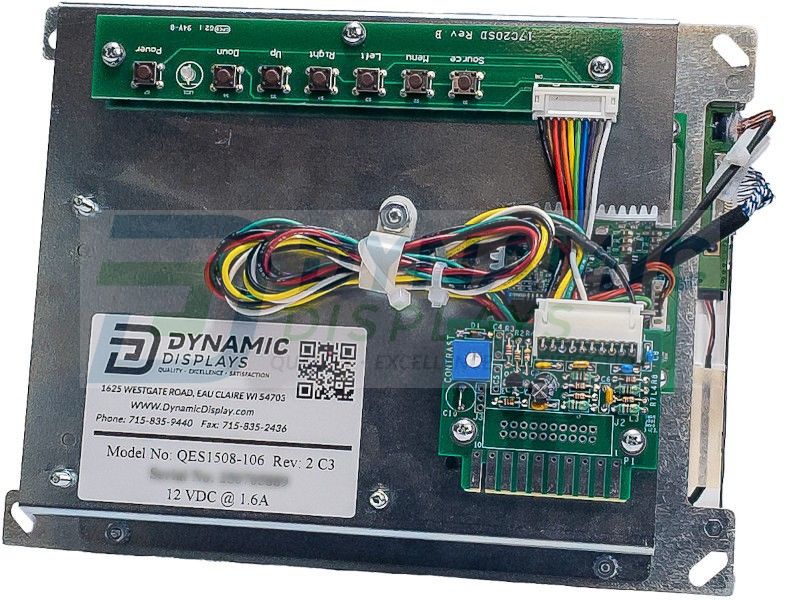

The QES1508-106 8.4-inch LCD uses an industrial-grade LCD with a long life (>50,000 hours) LED backlight to provide a reliable, cost-effective, simple, easy-to-install CRT replacement you are looking for. Tired of splicing wires and changing connectors? Proudly manufactured in Eau Claire, Wisconsin, and backed by a 2-year factory warranty and bi-lingual (English / Spanish) customer support, Dynamic Displays' Model QES1508-106 8.4 inch LCD has the same 10-pin edgecard video input format and operates on the same 12Vdc power input as your old Z-Axis V109AM053 9-inch CRT display.
Upgrading the Z-Axis V109AM053 9-inch CRT monitor with model QES1508-106 LCD:
Installing the QES1508-106 8.4-inch LCD monitor into your existing Dynapath control takes just a few simple steps.
- First, disconnect and remove the 9-inch CRT chassis from your Dynapath machine control.
- Second, remove the old 9-inch CRT and electronics from the Z-Axis V109AM053 chassis.
- Third, mount the QES1508-106 8.4-inch LCD into the now-empty 9-inch CRT mounting holes.
- Fourth, re-install the 9-inch CRT chassis back into your Dynapath CNC machine control.
- Fifth, re-attach the 10-pin edgecard video/power connection.
Congratulations! You're done! All that's left to do is power your equipment up and see the bright, crisp image now being displayed. The LCD should auto-adjust to present the correct image. If the LCD needs further adjustment, we've provided on-screen-display adjustment capability.
Don't delay. Upgrade the old, low-performance Z-Axis V109AM053 9-inch CRT display in your Dynapath CNC control with a new, affordable, reliable replacement QES1508-106 LCD Flat Panel display today and extend the useful life of your production equipment for years to come.
Please also consider Dynamic Displays' many industrial LCD products for your other CNC monitor replacement needs.
The Dynamic Displays Advantage
- Made in the USA: Our products are designed and manufactured in Eau Claire, WI, USA.
- Our products include a 2-year warranty.
- 100% satisfaction guaranteed.
- Proud and proven: We have been in business since 1991 as an industrial manufacturer with a proven, tangible track record.
- Human interface: Our bilingual (English/Spanish) technical support staff is highly responsive and based in the United States
