Matsushita TR-90S1C 9-inch CRT upgrade LCD
Model QES1508-106 8.4-inch LCD replaces Matsushita TR-90S1C 9″ monochrome (green) CRT monitors in OKK MHA-600 CNC Vertical Mill CNC Controls.
Model QES1508-106 8.4 in LCD replaces Matsushita TR-90S1C 9 in monochrome CRT monitors in OKK MHA-600 Vertical Mill CNC Controls.
Has the Matsushita TR-90S1C 9" monochrome CRT monitor in your OKK MHA-600 CNC Control failed or does it need replacing? Are you tired of settling for refurbished old CRT replacements or cheap Chinese displays with unknown warranties and no support. Tired of splicing wires and changing connectors? Well, Dynamic Displays has a solution for you! Our Model QES1508-106 8.4-inch LCD is a direct replacement for the Matsushita TR-90S1C 9" green-phosphor CRT monitors used in OKK CNC Controls.

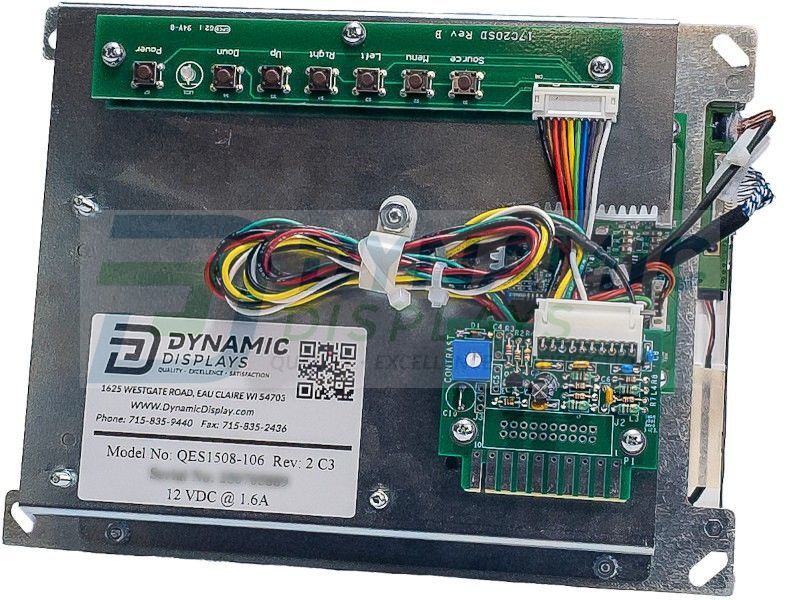

The QES1508-106 8.4-inch LCD uses an industrial-grade LCD with a long life (>50,000 hours) LED backlight to provide a simple, reliable, cost-effective, easy-to-install CRT replacement you are looking for. Proudly manufactured in Eau Claire, Wisconsin, and backed by a 2-year factory warranty and bi-lingual (English / Spanish) customer support, Dynamic Displays' Model QES1508-106 8.4 inch LCD has the same 10-pin edge-card video input format and operates on the same 12Vdc power input as your old Matsushita TR-90S1C 9-inch CRT display.
Replacing the Matsushita TR-90S1C 9-inch CRT monitor with model QES1508-106:
You can install the QES1508-106 8.4-inch LCD monitor into your existing OKK MHA-600 control with just a few easy steps.- First, disconnect the 10-pin edge card video/power connection and remove the 9-inch CRT chassis from your MHA-600 OKK machine control.
- Second, remove the old 9-inch CRT and electronics from the Matsushita TR-90S1C's chassis.
- Third, bolt the QES1508-106 8.4-inch LCD into the now-empty 9-inch CRT mounting holes.
- Fourth, mount the 9-inch CRT chassis back into your OKK MHA-600 CNC Vertical Mill control.
- Fifth, re-attach your video/power cable to the 10-pin edge card connector.
The installation is complete! All you need do next is power your OKK MHA-600 Vertical Mill up and see the bright clear images now displayed. The QES1508-106 LCD will auto-adjust to present the correct image. If the image needs further adjustment, we've provided on-screen-display adjustment capability.
The Dynamic Displays Advantage
-
- Made in the USA: Our products are designed and manufactured in Eau Claire, WI, USA.
- Our products include a 2-year warranty.
- 100% satisfaction guaranteed.
- Proud and proven: We have been in business since 1991 as an industrial manufacturer with a proven, tangible track record.
- Human interface: Our bilingual (English/Spanish) technical support staff is highly responsive and based in the United States
