Hitachi TX-1424AD CRT Monitor Upgrade

Model QES1512-208 12.1 In LCD replaces Matsushita (Panasonic) TX-1424AD, 14 In Color CRT Monitors used in Hitachi Seiki HITEC-TURN 40 S – Yaskawa Yasnac ACGC-120 and ACGC-130.

---

Hitachi TX-1424AD CRT Monitor Upgrade

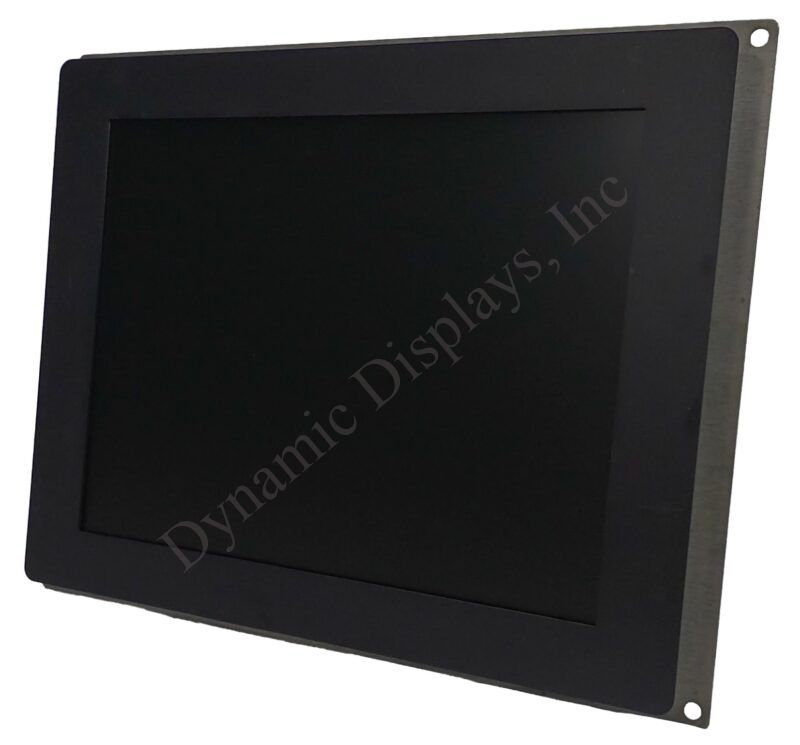

To enhance the functionality of the outdated Hitachi TX-1424AD 12 Inch CRT monitor, we are pleased to introduce the QES1512-208 monitor as a direct replacement for the original legacy Color used on Yasnac ACGC 120 and Yasnac ACGC130 Man-Machine Interface Systems. This upgrade seamlessly integrates into your existing setup, offering improved performance and functionality. The QES1512-208 directly replaces the older Hitachi TX-1424AD display, providing a more modern and reliable solution for your Yasnac ACGC machine. Our Hitachi TX-1424AD monitor upgrade mounts directly onto the original CRT mounting holes on the monitor chassis. QES1512-208 is a 12-inch color LCD monitor with a 10-pin Ribbon Video Cable Connector for video interface. This 12" LCD with an LED backlight offers superior clarity and visibility compared to the traditional CRT display while consuming less power and generating less heat. If your Hitachi Monitor model isn't listed on our website, don't worry! Contact us, and we'll gladly help you find a compatible upgrade. We also offer upgrades for a variety of other Hitachi models.

QES15121-208 LCD Replacement Features:

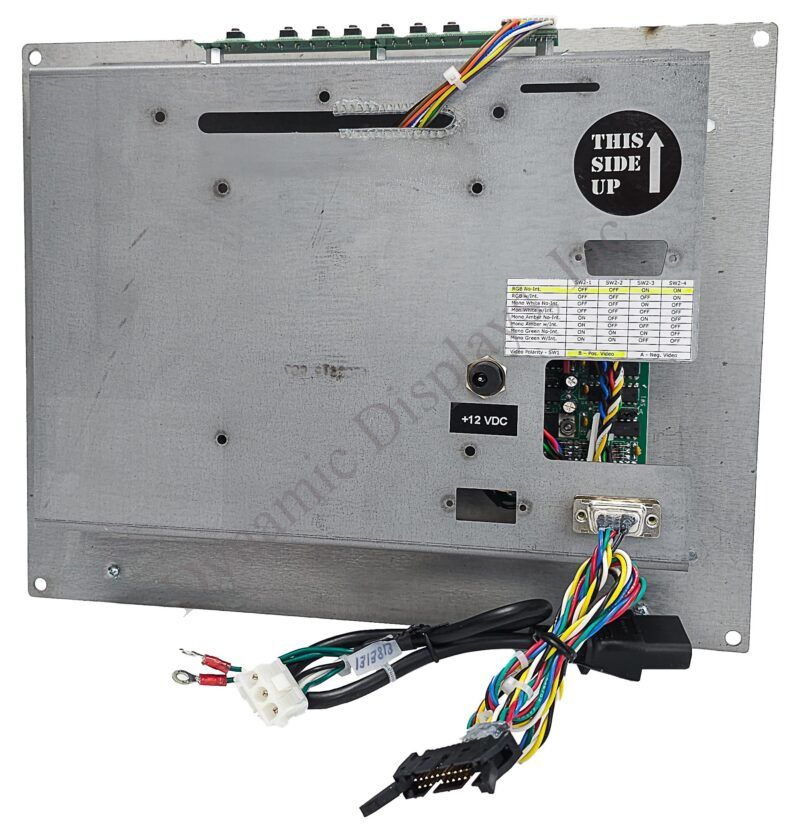

• Drop directly into the mounting holes of a 12” Hitachi TX-1424AD
• Interface Signal Connector: 10-Pin Ribbon Video Cable
• Input Video: TTL Color with Separate Sync.
• Internal Input Signal Filtering
• 4-inch LCD with reliable LED Backlight
• Input Voltage: 100/220VAC - 50/60Hz
• High Brightness – 600 Cd/M2 Typical
• High Contrast – 400:1 Typical
• Rugged Cold Roll Steel Open-Frame Chassis
• Two-year warranty included.

Quick Installation for Hitachi TX-1424AD:

• Disconnect the Ribbon Video Cable and AC Power connectors on the CRT assembly.
• Remove the Hitachi TX-1424AD assembly and main chassis from the CNC machine.
• Remove CRT from assembly from the monitor.
• Install QES1512-208 on the CRT mounting holes using the same hardware.
• Install CRT Assembly and main chassis.
• Connect the Ribbon Video Cable Connector and AC Power connectors to the system.
• DONE.
• Typical Procedure: Instructions

Suppose you are uncomfortable performing the upgrade on your Hitachi TX-1424AD Monitor by yourself. In that case, the team at Dynamic Displays is pleased to offer you the retrofit service at no cost. Don't hesitate to get in touch with them by phone at 715-835-9440 or via email at [email protected].

The Dynamic Displays Advantage

• Made in the USA: Our products are designed and manufactured in Eau Claire, WI, USA.
• Our products include a 2-year warranty.
• 100% satisfaction guaranteed.
• Proud and proven: We have been in business since 1991 as an industrial manufacturer with a proven, tangible track record.
• Human interface: Our bilingual (English/Spanish) technical support staff is highly responsive and based in the United States

Typical QES1512-208 Monitor applications:

• Matsushita Model No. TX-1424AD 12” Color CRT Monitor
• Hitachi Seiki HITEC-TURN 40 S – CNC Lathe Machining
• Yaskawa Yasnac ACGC-120 - Type JZNC-OP166-1
• Yaskawa Yasnac ACGC-120 - Type JZNC-OP157-1
• Yaskawa Yasnac ACGC-130 - Type JZNC-10P 53A
