Yasnac DBM-091 Monitor UPGRADE
Our QES1508-120 is a high-performance, 8.4-inch Active Matrix TFT LCD monitor whose rugged, open-frame steel chassis is designed to drop right into the mounting holes of the original Yasnac DBM-091 Monitor 9 In CRT.
Hitachi Seiki DBM-091 Monitor
Are you trying to find a drop-in replacement for the failed Yasnac DBM-091 9-inch CRT Monitor in your Mazak VTC-41M CNC Vertical Machining Center quickly? Well, look no further! Dynamic Displays has the perfect solution. When the 9-inch monochrome CRT monitor in your Yaskawa LX3 Machine control fails and you need to find a drop-in replacement monitor, try upgrading with our QES1508-120 LCD. This sturdy LCD is a high-performance, 8.4-inch Active Matrix TFT LCD monitor whose rugged, open-frame steel chassis mounts directly into the CRT mounting holes on the original Yasnac DBM-091 chassis. No need to replace or make expensive modifications to the original Yasnac Yaskawa LX3 control. The QES1508-120 8.4-inch LCD also operates at 12VDC and accepts the Monochrome TTL video signals via the 10-pin edge connector used in Yaskawa LX3 Machine control, which means you can upgrade the original Yasnac DBM-091 monitor with no need for signal adapters of any sort. Featuring 600:1 contrast ratio and 450 nits brightness, the rugged QES1508-120 TTL LCD TFT display is an excellent replacement for the legacy Yasnac CRT display in your Mazak VTC-41M CNC Vertical Machining Center. If you are uncomfortable with the prospect of upgrading your Yasnac DBM-091 CRT monitor yourself, Dynamic Displays can perform the retrofit at no cost to you. Just give us a call at 715-835-9440 or email us at [email protected]. Yasnac DBM-091 replacement LCD Monitor Features:- The QES1508-120 Monitor Upgrade drops directly into the CRT mounting holes of the Yasnac DBM-091 monitor chassis.
- 8.4” LCD
- Input Video: TTL Monochrome with Separate Sync
- Input Power: 12 VDC
- Input Signal Connectors: 10-Pin Edge Connector
- High Brightness – 450 Cd/M2 Typical
- High Contrast – 600:1 Typical
- Rugged Cold Roll Steel Open-Frame Chassis
DYNAMIC DISPLAYS ADVANTAGE
- Made in the USA: Our products are designed and manufactured in Eau Claire, WI, USA.
- Our products include a 2-year warranty.
- 100% satisfaction guaranteed.
- Proud and proven: We have been in business since 1991 as an industrial manufacturer with a proven, tangible track record.
- Human interface:
- Our bilingual (English/Spanish) technical support staff is highly responsive and based in the United States.

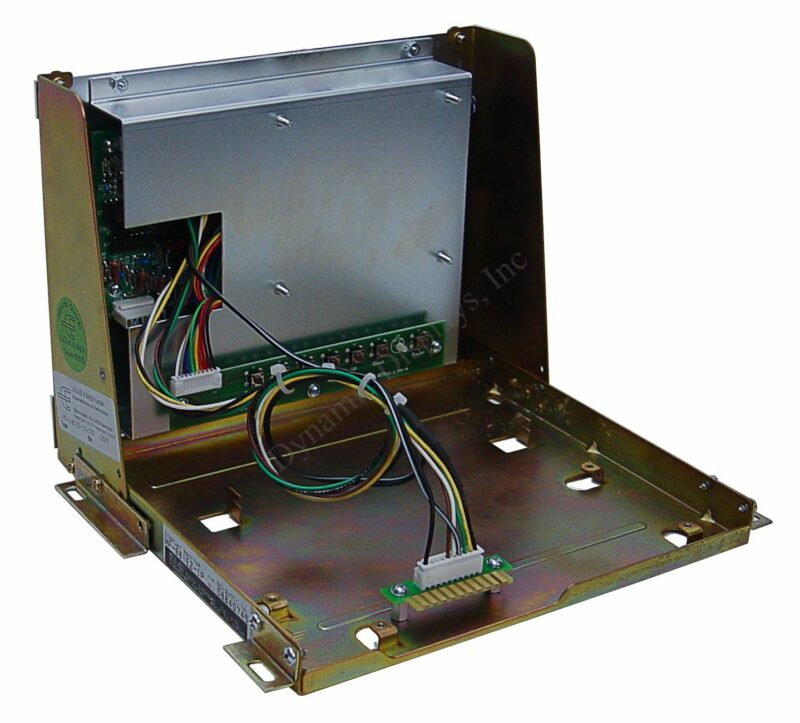

Yasnac DBM-091 CRT Monitor - Rear View
