Totoku CDT14149B-1A,
14 In Color CRT Display Replacement

Model QES1512-102 12.1 In LCD replaces Totoku Electric CDT14149B-1A 14 In Color CRT Monitors used in Okuma OSP7000L controls.

At Dynamic Displays we are dedicated to speed & honesty with our EZ-Quote system.

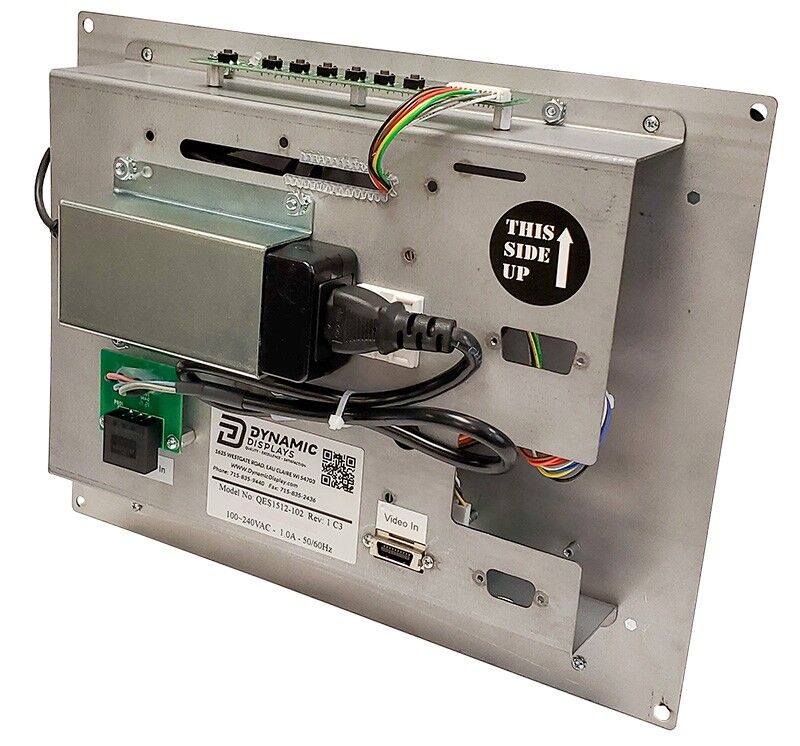

Totoku CDT14149B-1A Monitor, 14 In Color CRT Monitor used in Okuma OSP7000L Control. If you need a replacement for the old Totoku CDT14149B-1A monitor 14” CRT monitor used in your Okuma OSP7000 CNC control , why not consider installing our modern, high-quality 12.1” LCD display instead? We’ve made it easy for you by designing the rugged, open-frame chassis of the new QES1512-102 12.1" LCD display so it can drop into the mounting holes of the original Totoku Model CDT14149B-1A Okuma CNC control systems, making it unnecessary to replace your original Okuma CNC 14” CRT Monitor chassis. It also comes with a wire adapter, so you can plug into your existing Hirose (Honda) 20 Pin Input Connector. What’s more, the video input circuitry of the QES1512-102 accepts the video signals from the original Okuma system with no need for signal adapters of any sort. This makes the QES1512-102 12.1-inch Okuma monitor retrofit LCD display an ideal Okuma Replacement Monitor for Totoku CDT14149B-1A 14-inch CRT monitor.  Additionally, while this QES1512-102 12.1-inch LCD display has been optimized to operate at 640 x 480 at 31.5Khz/60Hz FANUC control console timing, it also operates with a variety of other legacy monitor timings, making it a drop-in replacement LCD monitor for other CRT monitor brands, such as Tatung, Matsushita, Hitachi, and Toshiba.
Totoku CDT14149B-1A Monitor, 14 In Color CRT Monitor used in Okuma OSP7000L Control.

Totoku CDT14149B-1A Monitor, 14 In Color CRT Monitor used in Okuma OSP7000L Control.

Totoku CDT14149B-1A LCD Upgrade Specifications:
  • Original Manufacturer part number: CDT14149B-1A
  • Original Monitor Discontinued by Manufacturer
  • 12.1” LCD with LED Backlight
  • High Contrast and Brightness
  • 120/240 VAC -1.6 AMP - 50/60 HZ
  • Two Year warranty included.

QES1512-102 Series Features

  • Designed For Okuma OSP7000L and Fanuc system 15T, Fanuc 16, 18, 20, 21 CNC Control Series
  • Okuma CDT14149B-1A Monitor Replacement
  • Totoku Electric CDT14149B-1A Monitor Replacement
  • Hirose (Honda) 20 Pin Input Connector
  • Chassis drops directly into a Fanuc 14-inch CRT Mounting Holes
