Toei TLC-103LASMA 14 In Color CRT Monitor Replacement
Model QES1512-231 12.1 In LCD replaces Toei #TLC-103LASMA LCDs and other 14 In Color CRT Monitors used in Makino EDNC 32 EDNC 43, and EDNC 64 Vertical EDM Machines

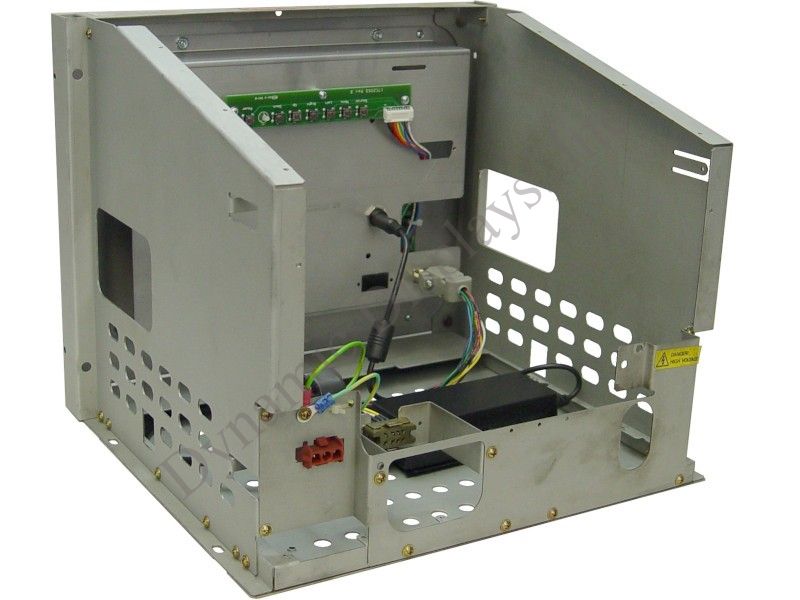

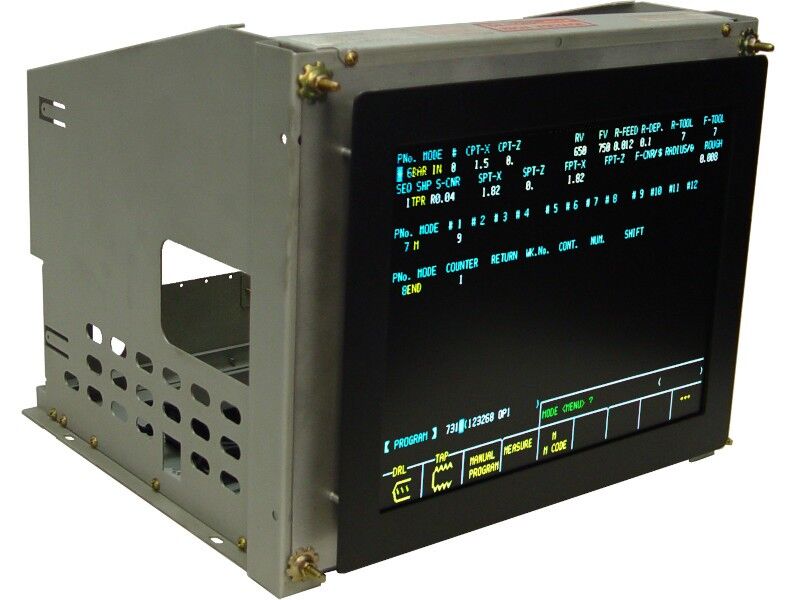

Model QES1512-231 12.1 In LCD replaces Toei TLC-103LASMA 14 In Color CRT Monitor LCD replacement in Makino EDNC64 Vertical EDM Sinkers.
The Toei Model TLC-103LASMA LCD was used to replace obsolete NEC DU-1437A-1B00 and Toshiba D14CD34 14-inch CRT color monitors in Makino EDNC32, EDNC43 and EDNC64 Vertical EDM Sinkers. Unfortunately, Toei discontinued making Model TLC-103LASMA a number of years ago, so if your display fails, you have limited options. You could try an old, refurbished CRT replacement, but these generally have limited warranties. You could gamble on a cheap Chinese display, but then you have to cope with an unknown warranty and no support. Thankfully, there's now another option. Enter Dynamic Displays' model QES1512-231 12.1-inch open-frame LCD. Dynamic Displays' Model QES1512-231 12.1-inch LCD replaces the Toei Model TLC-103LASMA LCD and other CRT color monitors used in some Makino EDNC32, EDNC43, and EDNC64 EDMs (Electrical Discharge Machines) and other machine controls. This rugged, industrial-grade 12.1-inch LCD (Liquid Crystal Display) monitor is an ideal replacement for the no-longer-available Toei Model TLC-103LASMA LCD. The mounting holes of this rugged, industrial-grade LCD (Liquid Crystal Display) monitor align perfectly with the 14-inch CRT holes in the original Toshiba or NEC 14" CRT monitor chassis and it has the same HIROSE 8-pin RGB video input and AMP 3-pin AC power connectors as your Makino EDNC32, EDNC43, and EDNC64 EDM video cables, making installation a breeze. No messy modifications or adapters cords are needed. No cutting and splicing cables. Simply remove your old Toei TLC-103LASMA LCD from the chassis, replace the Toei with our QES1512-231 LCD, and slide the upgraded chassis back in – it's as simple as that. Proudly manufactured in America's heartland and backed by a 2-year factory warranty and bi-lingual (English / Spanish) customer support, the QES1512-231 12.1-inch LCD will provide a simple, reliable, cost-effective, easy-to-install CRT replacement you are looking for. Since Dynamic Displays' Model QES1512-231 12.1 inch LCD mounts into the CRT mounting holes of any 14-inch Color CRT monitor and its HIROSE 8-pin video input 3-pin power connection match those of your old Toei Model TLC-103LASMA 14-inch CRT display, installation is amazingly easy.Installing model QES1512-231 into your Toei TLC-103LASMA 14-inch CRT monitor Chassis:
Install the QES1512-231 12.1-inch LCD monitor into your existing Makino EDNC64 Control takes just a few easy steps.- First, shut down and disconnect the AC power and the video connection from your Makino EDNC64 EDM and remove the 14-inch CRT chassis.
- Second, remove the Toei Model TLC-103LASMA LCD from the chassis.
- Third, bolt the QES1512-231 12.1-inch LCD into the now-empty 14-inch CRT mounting holes.
- Fourth, mount the 14-inch CRT chassis back into your Makino EDNC32, EDNC43 or EDNC64 Control.
- Fifth, re-attach the HIROSE 8-pin video and the AMP 3-pin AC power connections.
The Dynamic Displays Advantage
- Made in the USA: Our products are designed and manufactured in Eau Claire, WI, USA.
- Our products include a 2-year warranty.
- 100% satisfaction guaranteed.
- Proud and proven: We have been in business since 1991 as an industrial manufacturer with a proven, tangible track record.
- Human interface: Our bilingual (English/Spanish) technical support staff is highly responsive and based in the United States
