QES1519-301 19-in Panelmount Monitor – VGA/HDMI/NTSC/PAL Video

QES1519-301 Industrial-grade QES1519-301 NEMA 4/12 (IP65) Panelmount 19″ LCD Monitor accepts VGA, HDMI and NTSC/PAL CVBS Composite video.

At Dynamic Displays we are dedicated to speed & honesty with our EZ-Quote system.


Rugged 19-inch Panelmount LCD with VGA/HDMI/NTSC/PAL Video Inputs

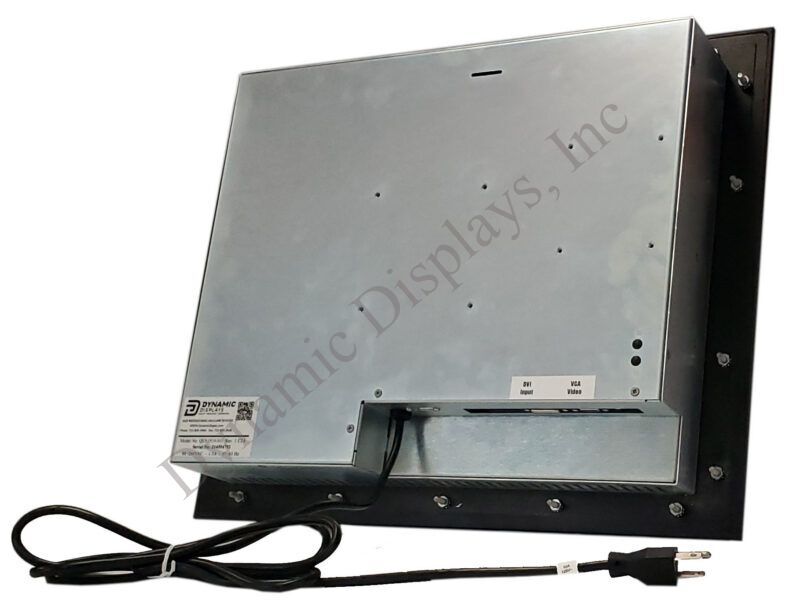

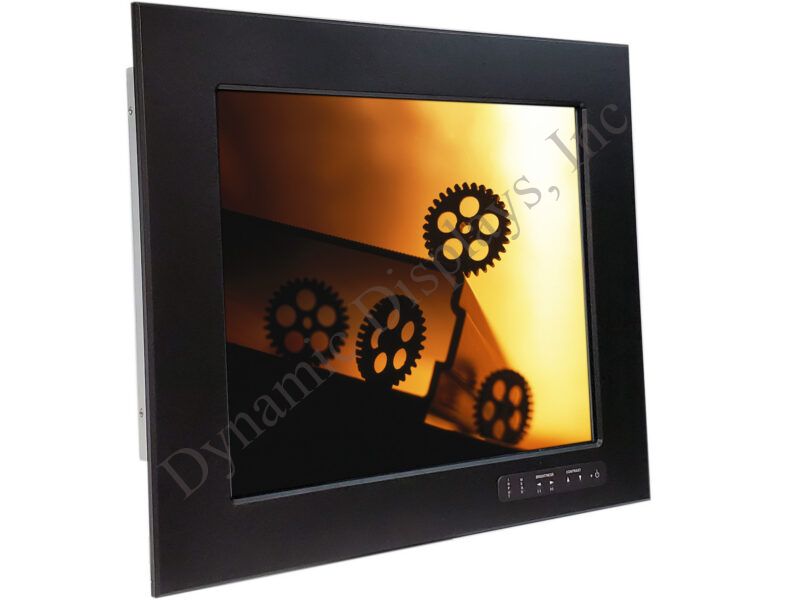

Model QES1519-301
Introducing Dynamic Displays' Industrial-grade model QES1519-301  19-inch LCD desktop Monitor, designed to replace hard-to-find industrial monitors such as the Gloucester Engineering (GEC) PC19035R monitor.  Packaged in an industrial-grade NEMA 4/12 (IP65) panelmount chassis, this high-performance 19-inch LCD display accepts VESA-standard VGA-style analog video input signals and modern HDMI  formats found in many modern industrial control environments, as well as NTSC/PAL Composite video, also known as CVBS (composite video baseband signal or color, video, blanking and sync) for full-color video applications. Proudly manufactured in Eau Claire, Wisconsin, America's heartland, these sturdy NEMA-grade panelmount LCD monitors are intended for use in industrial, manufacturing, transportation applications, and other severe environments that require bright, crisp images and versatile interfaces.  These displays are very ruggedly built with exceptional shock and vibration safeguards and feature long-life LED back-lit LCDs with no scheduled End-Of-Life. Incorporating the latest LCD and control electronics, you are assured a display that will perform reliably in harsh industrial environments.

The Dynamic Displays Advantage

  • Made in the USA: Our products are designed and manufactured in Eau Claire, WI, USA.
  • Our products include a 2-year warranty.
  • 100% satisfaction guaranteed.
  • Proud and proven: We have been in business since 1991 as an industrial manufacturer with a proven, tangible track record.
  • Human interface: Our bilingual (English/Spanish) technical support staff is highly responsive and based in the United States.

QES1519-301 Series Features

  • Rugged Industrial-Grade LCD TFT Panel
  • 19” SXGA Color TFT LCD; 1280x1024 Native Resolution
  • Long-Life Advanced LED Backlighting, over 50,000 Hours
  • High Bright Active Matrix TFT Display - 300 Nits
  • Bonded Anti-Reflective Protective Faceplate Glass
  • High Contrast – 2000:1 Typical.
  • Heavy Duty Aluminum NEMA 4/12 (IP65) Front Panel, Powder-coat
  • Heavy Duty Cold Roll Steel Chassis
  • 88-264 VAC Power
  • VGA HD15 DSub Input – 15 to 100 kHz Standard VESA Input Timings
  • HDMI Video Input
  • NTSC/PAL CVBS (composite video baseband signal)

Other Options Include

  • Resistive, Capacitive and SAW touchpanel Option
  • RS170 - RS343 (STANAG 3350 A,B, & C) Video Input Option
  • Sun Light Readable Option
  • Differential Video Noise-reduction Option
