QES1519-071 19-inch Tabletop Monitor – VGA/Differential RGB-SOG BNC Video
QES1519-071 Industrial-grade Tabletop/Desktop/Arm-mount 19″ LCD Monitor with VGA & 3 Differential BNC Video Inputs. Accepts RS170, RS343, STANAG 3350A, B, and C Interlace Formats With a wide frequency range of operation, from RS – 170A (15KZ Interlace) up to 100 kHz.
Rugged 19-inch Tabletop LCD with VGA and 3 Differential Video BNC Inputs
Model QES1519-071
Introducing Dynamic Displays' model QES1519-071 Industrial-grade 19-inch LCD desktop Monitor, designed for legacy and/or replacement applications in high-noise environments. Packaged in a rugged metal industrial-grade desktop/tabletop chassis with VESA mounts at the rear for arm-mount applications, these high-performance 19-inch LCD display accept the VESA-standard VGA-style analog video input signal formats found in many modern industrial control environments as well as full-color RS-170A, RS-343, STANAG 3350 standard interlace formats via 3 BNCs with differential video capability for enhanced noise immunity in harsh environments. Proudly manufactured in America's heartland, these sturdy desktop LCD monitors are intended for use in industrial, manufacturing, transportation applications, and other severe environments with a requirement for bright, crisp images and versatile interfaces. These displays are very ruggedly built with exceptional shock and vibration safeguards and feature long-life LED back-lit LCDs with no scheduled End-Of-Life. Incorporating the latest LCD and control electronics you are assured a display that will perform reliably in harsh industrial environments.

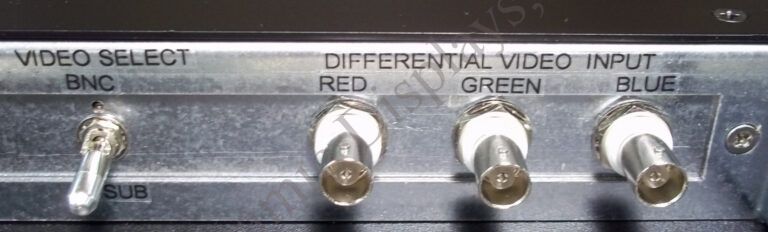

QES1519-071 Differential BNC Video inputs
Advantages of Differential Signaling
Following are the key benefits of differential signaling.- High Resistance to electromagnetic interference (EMI) because the signals are transmitted on balanced lines.
- Low EMI Radiation.
- Reduced Crosstalk: Minimizes electronic crosstalk between signals.
- Better common-mode rejection and improved power supply rejection.
- Harmonic Cancellation: Offers inherent cancellation of even order harmonics. Pre-distortion techniques can further reduce odd harmonics.

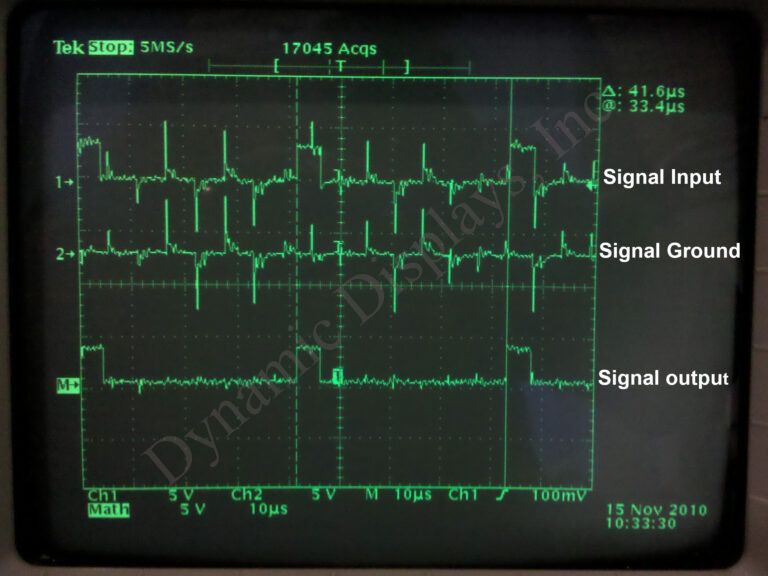

Differential Video Capability input and output signals
The Dynamic Displays Advantage
- Made in the USA: Our products are designed and manufactured in Eau Claire, WI, USA.
- Our products include a 2-year warranty.
- 100% satisfaction guaranteed.
- Proud and proven: We have been in business since 1991 as an industrial manufacturer with a proven, tangible track record.
- Human interface: Our bilingual (English/Spanish) technical support staff is highly responsive and based in the United States.
