QES1517-433 Rackmount 17-in LCD Monitor – 3-channel RS170/RS343 RGB-SOG video
QES1517-433 17-in Rackmount LCD with 3-channel-selectable RS170/RS343 RGB-SOG video inputs.
Rackmount 17-in LCD Monitor with 3-channel RS170/RS343 RGB-SOG video
Model QES1517-433
Dynamic Displays is pleased to introduce our Model QES1517-433 industrial-grade rackmount LCD Monitor. This rugged 17-inch rack mount monitor features a high-performance industrial-grade 17-inch LCD display packaged in a rugged 8U EIA RS-310 C rack mount chassis, and accepts 3 switch-selectable RS17-/RS343 RGB-SOG [Red-Green-Blue Sync-on-Green] video signals. Proudly manufactured in Eau Claire, Wisconsin, this rugged rackmount LCD is very ruggedly built and features a long-life LED Backlit LCD panel with no scheduled End-Of-Life. Incorporating the latest LCD and control electronics, you are assured a display that will perform reliably in harsh industrial environments.QES1517-433 17-in Rackmount LCD Monitor Features:
- 17" Industrial-Grade LCD SXGA Color TFT LCD.
- Long-Life Advanced LED Backlighting, over 50,000 Hours.
- Long-life Solid State LED Backlight Module.
- Bonded Anti-Reflective Protective Faceplate Glass.
- High Brightness - 300 Nits.
- High Contrast – 2000:1 Typical.
- Rugged 8U EIA RS-310 C rack mount chassis.
- Heavy Duty Aluminum Front Panel.
- Heavy Duty Cold Roll Steel Chassis.

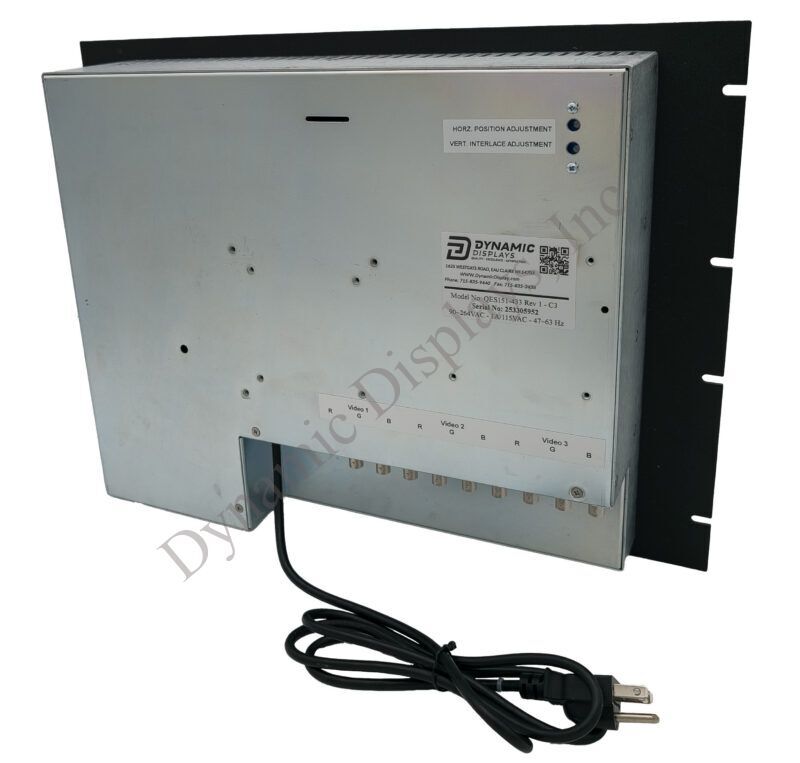

- Interface Connectors: 9 BNC [3 per channel].
- RS-170 (525 Line), RS-343 (875-Line), and STANAG 3350 Interlace Formats.
- Input Power: 110/220 VAC.
- Front-panel OSD Membrane Switch.
- 3-position Front-panel Rotary Video Switch.
The Dynamic Displays Advantage
- Made in the USA: Our products are designed and manufactured in Eau Claire, WI, USA.
- Our products include a 2-year warranty.
- 100% satisfaction guaranteed.
- Proud and proven: We have been in business since 1991 as an industrial manufacturer with a proven, tangible track record.
- Human interface: Our bilingual (English/Spanish) technical support staff is highly responsive and based in the United States.
