QES1517-217 17-inch Desktop Monitor – VGA/5-BNC Video Inputs

QES1517-217 Industrial-grade Tabletop/Desktop/Arm-mount 17-inch LCD Monitor with VGA & 5 BNC Video Inputs. Accepts RS170, RS343, STANAG 3350A, B, and C Interlace Formats With a wide frequency range of operation, from RS – 170A (15KZ Interlace) up to 100 kHz.

GET EZ QUOTE

At Dynamic Displays we are dedicated to speed & honesty with our EZ-Quote system.

Rugged 17-inch Desktop LCD with VGA and 5 BNC Inputs

Model QES1517-217
Dynamic Displays proudly introduces our QES1517-217 Industrial-grade 17-inch LCD desktop monitor specifically designed for legacy or replacement applications. Packaged in a rugged metal industrial-grade desktop/tabletop chassis with VESA-standard mounts at the rear for arm-mount applications, these high-performance 17-inch LCD displays feature two switch-controlled video inputs: a HD15-pin VGA connection which accepts the VESA-standard analog video formats found in many modern industrial control environments, and 5 BNC connectors which accept a wide variety of 3, 4, and 5-wire full-color standard interlace formats such as RS-170A, RS-343, STANAG 3350.

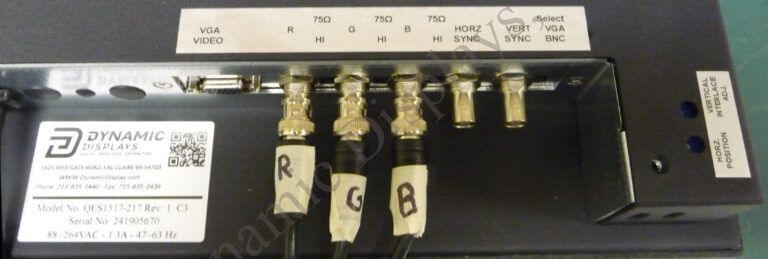

QES1517-217 accepts HD-15 VGA and 3,4,5-wire BNC video

QES1517-217 17-inch LCD accepts HD-15 VGA and 3,4,5-wire BNC video

This unit also operates with many Non-Standard timings: ABB, Westinghouse, Fisher, Bailey, Allen-Bradley, Foxboro, Honeywell, Moore, Siemens, Forney, Harris, Fanuc, Giddings and Lewis, Walter Grinders, and Berger. Our rugged model QES1517-217 desktop LCD monitors are intended for use in industrial, manufacturing, financial, transportation applications, and other severe environments with a requirement for bright, crisp images and versatile interfaces with exceptional shock and vibration safeguards. This product is very ruggedly built and feature long-life LED back-lit LCD panels with no scheduled End-Of-Life. Incorporating the latest LCD and control electronics, you are assured a display that will perform reliably in harsh industrial environments.

The Dynamic Displays Advantage

  • Made in the USA: Our products are designed and manufactured in Eau Claire, WI, USA.
  • Our products include a 2-year warranty.
  • 100% satisfaction guaranteed.
  • Proud and proven: We have been in business since 1991 as an industrial manufacturer with a proven, tangible track record.
  • Human interface: Our bilingual (English/Spanish) technical support staff is highly responsive and based in the United States.
Contact Us

QES1517-217 Series Features

  • Rugged Industrial-Grade LCD Panel
  • 17” SXGA Color TFT LCD; 1280x1024 Native Resolution
  • Long-Life Advanced LED Backlighting, over 50,000 Hours
  • High Bright Active Matrix TFT Display - 300 Nits
  • High Contrast – 2000:1 Typical.
  • Heavy Duty Aluminum Front Panel, Powder-coat
  • Heavy Duty Cold Roll Steel Chassis
  • 88 ~ 264 VAC, 3 pronged plug provided
  • VGA HD-15D-Sub Input – 15 to 100 kHz Standard VESA Input Timings
  • 3, 4, 5 BNC Analog Video (0.7 Vpp @ 75 Ohms)
  • Analog RGB Sync-on-Green (SOG) – 3 BNC; 15.5Kz ~ 50KHz
  • Analog RGB - Separate Composite Sync – 4 BNC; 15.5Kz ~ 50KHz
  • Analog RGB - Separate H&V Sync – 5 BNC; 15.5Kz ~ 100KHz
  • Unit programmed to operate with STANAG 3350 A,B, & C; RS170A, 525 Lines - 15.75 KH/60Hz (Interlace); RS343 - 675, 729 Lines, and 875 Lines

Other Options Include

  • High Brightness Sunlight-readable Option
  • Extended temperature-range Option
  • Touch-panel Option
  • HDMI Input Option
