Ball CD-90 #7-022-0107 9-inch green CRT Monitor Replacement

Model QES1508-106 8.4-inch LCD replaces Ball Model CD-90 #7-022-0107 9-inch monochrome (green) CRT monitors in Cincinnati Milacron 3-424-1877A HMI controls
.

GET EZ QUOTE

At Dynamic Displays we are dedicated to speed & honesty with our EZ-Quote system.

Model QES1508-098 8.4-inch LCD replaces Ball Model CD-90 #7-022-0107 9-inch monochrome (green) CRT monitors in Cincinnati Milacron 3-424-1877A HMIs.

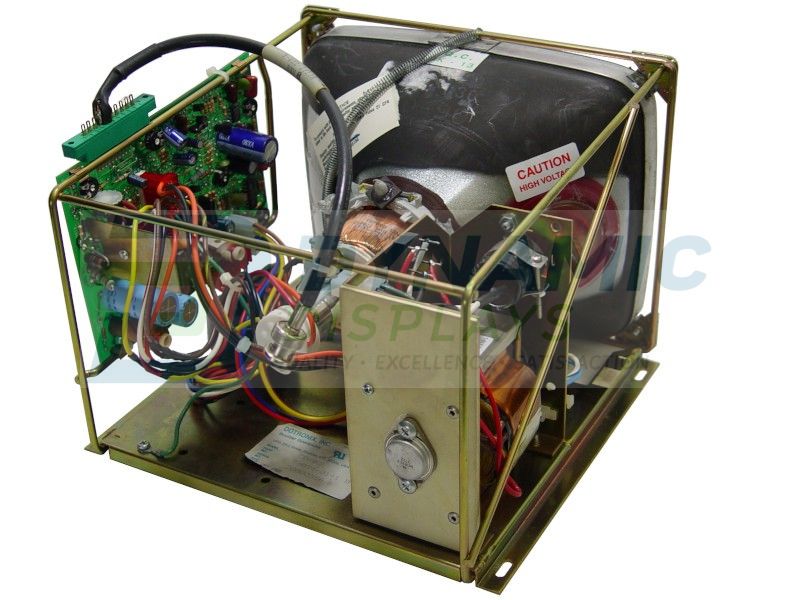

Has the Ball Model CD-90 #7-022-0107 9" monochrome CRT monitor in your Cincinnati Milacron 3-424-1877A HMI finally bit the dust? Are you tired of limping by with refurbished old CRT replacements that fail two days past the 90-day warranty or cheap Chinese displays with unknown warranties and no support. Thankfully, there's another option. Dynamic Displays' Model QES1508-098 8.4-inch LCD is a direct replacement for the Ball Model CD-90 #7-022-0107 9" monochrome CRT monitor used in your Cincinnati 3-424-1877A HMI. Proudly manufactured in America's heartland and backed by a 2-year factory warranty and bi-lingual (English / Spanish) customer support, the QES1508-098 8.4-inch LCD will provide a simple, reliable, cost-effective, easy-to-install CRT replacement you are looking for. Since Dynamic Displays' Model QES1508-098 8.4 inch LCD mounts into the CRT mounting holes of any 9-inch monochrome CRT monitor has the same BNC video input connection as your old Ball Model CD-90 #7-022-0107 9-inch CRT display and operates on 87-240 VAC power for amazingly easy installation.

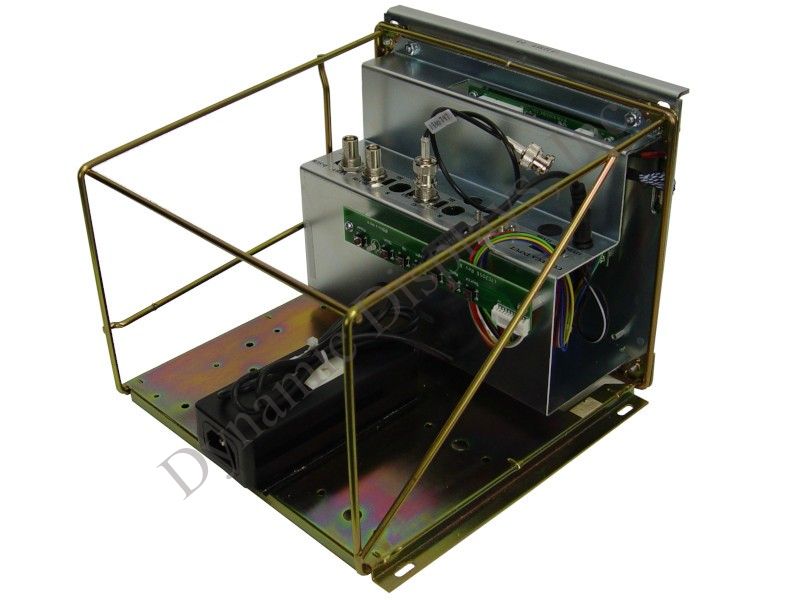

Installing model QES1508-098 into your Ball CD90 #7-022-0107 9-inch CRT monitor Chassis:

You can install the QES1508-098 8.4-inch LCD monitor into your existing Cincinnati Milacron 3-424-1877A HMI with just a few easy steps.
  • Shut down and disconnect the AC power and the BNC video connection from your Cincinnati Milacron 3-424-1877A machine control and remove the 9-inch CRT chassis.
  • Remove the old 9-inch CRT and electronics from the Ball Model CD-90 #7-022-0107's chassis.
  • Mount the QES1508-098 8.4-inch LCD into the now-empty 9-inch CRT mounting holes.
  • Reinstall the Ball CD90 9-inch CRT chassis into your Cincinnati Milacron HMI.
  • Re-attach the the BNC video and the AC power connections.
The installation is complete. All you need do next is power your equipment up and see the bright clear images now displayed. The QES1508-098 LCD will auto-adjust to present the correct image. If the LCD needs further adjustment, we've provided on-screen-display adjustment capability. The long life (>50,000 hours) LCD backlight in the rugged, high-performance 8.4-inch Active Matrix Color TFT LCD will provide crisp, clear images for years to come. Don't delay. Upgrade the low-performance Ball Model CD-90 #7-022-0107 9-inch CRT display in your Cincinnati Milacron 3-424-1877A with a new, reliable QES1508-098 LCD Flat Panel display today and extend the useful life of your CNC machine equipment for years to come. Please also consider Dynamic Displays' many industrial LCD products for your other CNC monitor replacement needs

The Dynamic Displays Advantage

  • Made in the USA: Our products are designed and manufactured in Eau Claire, WI, USA.
  • Our products include a 2-year warranty.
  • 100% satisfaction guaranteed.
  • Proud and proven: We have been in business since 1991 as an industrial manufacturer with a proven, tangible track record.
  • Human interface: Our bilingual (English/Spanish) technical support staff is highly responsive and based in the United States

Equivalent Models: Dotronix CD90; Dotronix CD-90; Ball CD90; #7-022-0107

Follow this link to see a searchable list of Industrial Replacement Monitors

Contact Us

QES1508-098 Series Features

  • Brighter, Sharper Display:: Say goodbye to the grainy, flicker-prone image of CRT technology. The QES1508-098 boasts crisp and vibrant LCD display, providing a significant improvement in visual clarity and comfort
  • Energy Efficient: Unlike power-hungry CRT monitors, the QES1508-098 is remarkably energy-efficient, helping you reduce your environmental footprint and potentially lowering your energy bills
  • Reduced Eye Strain: CRT displays tend to emit flicker and glare, which can contribute to eye fatigue and discomfort. The QES1508-098's flicker-free LED backlight helps minimize eye strain, particularly during extended use.
  • Durability and Reliability: Modern LCD technology offers superior durability and reliability compared to aging CRT monitors. You can expect the QES1508-098 to last for years to come, providing consistent performance without the worry of frequent breakdowns.
