Omni Vision LP0915GG4-P31 9-inch monochrome CRT monitor replacement LCD

Model QES1508-097 8.4-inch LCD replaces Omni Vision LP0915GG4-P31 9-inch monochrome CRT monitors in Cincinnati 3750 Hydraulic Shear controls

---

Model QES1508-097 8.4-inch LCD replaces Omni Vision LP0915GG4-P31 9-inch monochrome CRT monitors in Cincinnati 3750 Hydraulic Shear controls.

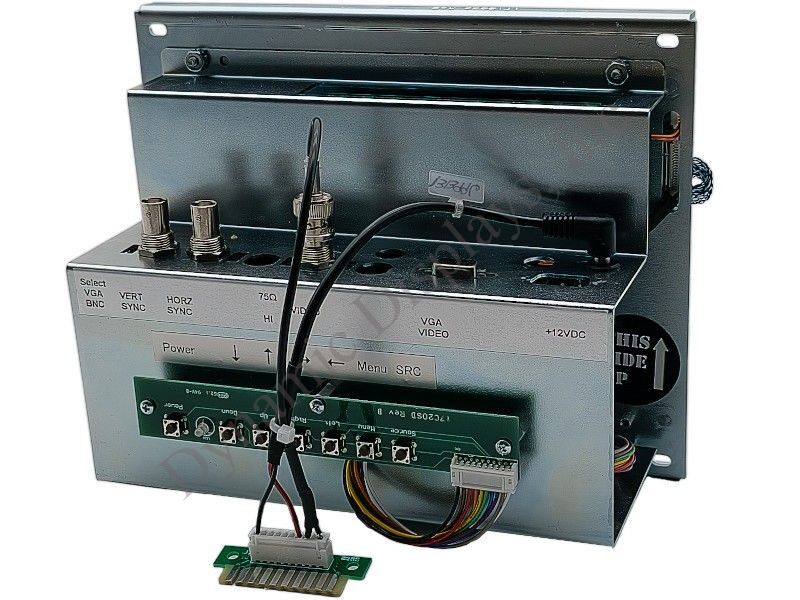

The Omni Vision LP0915GG4-P31 9" monochrome CRT monitor in your Cincinnati Shear Control has finally failed and needs replacing, but you don't want to settle for refurbished old CRT replacements or those cheap Chinese displays with unknown warranties and no support. You're tired of splicing wires and changing connectors. Well, Dynamic Displays has a solution for you! Our Model QES1508-097 8.4-inch LCD is a direct replacement for the Omni Vision LP0915GG4-P31 9" green-phosphor CRT monitors used in Cincinnati Shear CNC Controls. Our QES1508-097 8.4-inch with its industrial-grade LCD and long life (>50,000 hours) LED backlight provides the simple, reliable, cost-effective, easy-to-install CRT replacement you are looking for. Proudly manufactured in Eau Claire, Wisconsin, and backed by a 2-year factory warranty and bi-lingual (English / Spanish) customer support, Dynamic Displays' Model QES1508-097 8.4 inch LCD accepts the +12VDC power and monochrome composite video input with the same 10-pin edge-card connection connector as your old Omni Vision LP0915GG4-P31 9-inch monochrome CRT display.

Upgrading the Omni Vision LP0915GG4-P31 9-inch CRT monitor with model QES1508-097:

You can install the QES1508-097 8.4-inch LCD monitor into your existing Cincinnati Shear control with just a few easy steps.

• First, disconnect disconnect the 10-pin edge-card video  / power input connection and remove the Omni Vision LP0915GG4 9-inch CRT chassis from your Cincinnati Shear control.
• Second, remove the old 9-inch CRT and electronics from the Omni Vision LP0915GG4-P31's chassis.
• Third, bolt the QES1508-097 8.4-inch LCD into the now-empty 9-inch CRT mounting holes and place the 10-pin edge-card video  / power where desired.
• Fourth, mount the upgraded Omni Vision LP0915GG4 9-inch CRT chassis back into your Cincinnati Shear control.
• Fifth, re-attach your 10-pin edge-card video  / power cable to the QES1508-097 8.4-inch LCD monitor input connections.

The installation is complete! All you need do next is power your Cincinnati Shear up and see the bright clear images now displayed. The QES1508-097 LCD will auto-adjust to present the correct image. If the image needs further adjustment, we've provided on-screen-display adjustment capability.

The Dynamic Displays Advantage

• Made in the USA: Our products are designed and manufactured in Eau Claire, WI, USA.
• Our products include a 2-year warranty.
• 100% satisfaction guaranteed.
• Proud and proven: We have been in business since 1991 as an industrial manufacturer with a proven, tangible track record.
• Human interface: Our bilingual (English/Spanish) technical support staff is highly responsive and based in the United States

Equivalent Models:

• Display 2000 TC09M16C0M0
• Kristel 95HS-FD-2
