NEC DU-1437A-1B00 CRT Monitor Upgrade

Model QES1512-231 12.1 In LCD replaces NEC DU-1437A-1B00 14 In TTL Color CRT Monitors used in Makino EDNC-64 Vertical EDM Machines.

---

NEC DU-1437A-1B00 CRT Monitor Upgrade

Model QES1512-231 12.1 In LCD replaces NEC DU-1437A-1B00 14 In Color CRT Monitor LCD replacement in Makino EDNC64 Vertical EDM Sinkers.

What will you do when the NEC Model DU-1437A-1B00 14-inch RGB Color CRT monitor in your Makino EDNC 32, EDNC 43, or EDNC 64 Vertical EDM Sinker has failed? NEC discontinued production of the Model DU-1437A-1B00 a number of years ago, so if your display fails, you have limited options. You could try an old, refurbished CRT replacement, but these typically come with limited warranties. You could gamble on a cheap LCD display from China, but then you have to cope with an unknown warranty and no support. Thankfully, there's another option now. Don't merely replace; upgrade. You can now upgrade your old CRT monitor with Dynamic Displays' model QES1512-231 12.1-inch open-frame LCD. This rugged, industrial-grade 12.1-inch LCD monitor is an ideal replacement for the no-longer-available NEC Model DU-1437A-1B00 LCD. Dynamic Displays' Model QES1512-231 12.1-inch LCD replaces the NEC Model DU-1437A-1B00 LCD and other CRT color monitors used in some Makino EDNC32, EDNC43, and EDNC64 EDMs (Electrical Discharge Machines) and other machine controls. The mounting holes of this rugged, industrial-grade LCD monitor align perfectly with the 14-inch CRT holes in the original Toshiba or NEC 14" CRT monitor chassis, and it has the same HIROSE 8-pin RGB video input and AMP 3-pin AC power connectors as your Makino EDNC32, EDNC43, and EDNC64 EDM video cables, making installation a breeze. No messy modifications or adapter cords are needed. No cutting and splicing cables. Simply remove your old NEC DU-1437A-1B00 LCD from the 14-inch CRT chassis, replace the NEC with our QES1512-231 LCD, and slide the upgraded chassis back in – it's as simple as that.

The Dynamic Displays Advantage

• Made in the USA: Our products are designed and manufactured in Eau Claire, WI, USA.
• Our products include a 2-year warranty.
• 100% satisfaction guaranteed.
• Proud and proven: We have been in business since 1991 as an industrial manufacturer with a proven, tangible track record.
• Human interface: Our bilingual (English/Spanish) technical support staff is highly responsive and based in the United States

Proudly manufactured in America's heartland and backed by a 2-year factory warranty and bilingual (English / Spanish) customer support, the QES1512-231 12.1-inch LCD will provide a simple, reliable, cost-effective, and easy-to-install CRT replacement you are looking for. Since Dynamic Displays' Model QES1512-231 12.1 inch LCD mounts into the CRT mounting holes of any 14-inch Color CRT monitor, and its HIROSE 8-pin video input 3-pin power connection match those of your old NEC Model DU-1437A-1B00 14-inch CRT display, installation is amazingly easy.

Installing model QES1512-231 into your NEC DU-1437A-1B00 14-inch CRT monitor Chassis:

Install the QES1512-231 12.1-inch LCD monitor into your existing Makino EDNC64 Control takes just a few easy steps.

• First, shut down and disconnect the AC power and the video connection from your Makino EDNC64 EDM and remove the 14-inch CRT chassis.
• Second, remove the NEC Model DU-1437A-1B00 LCD from the chassis.

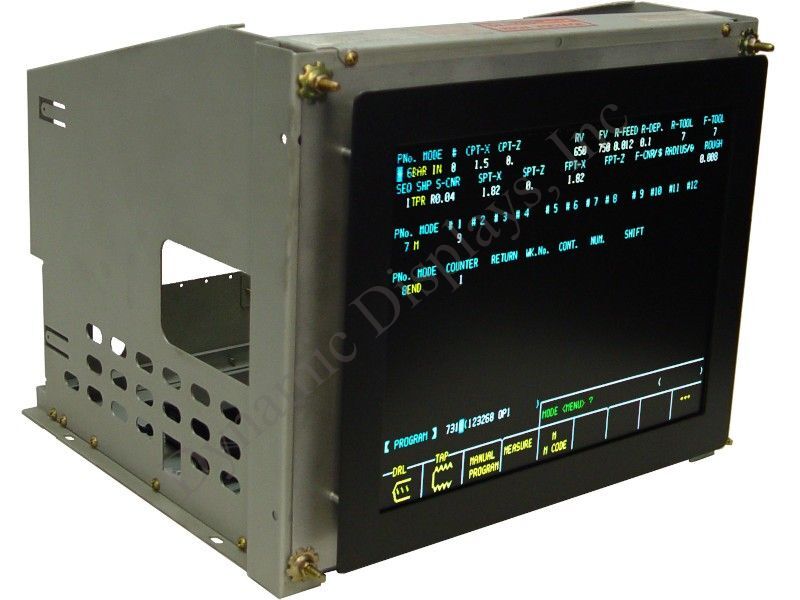

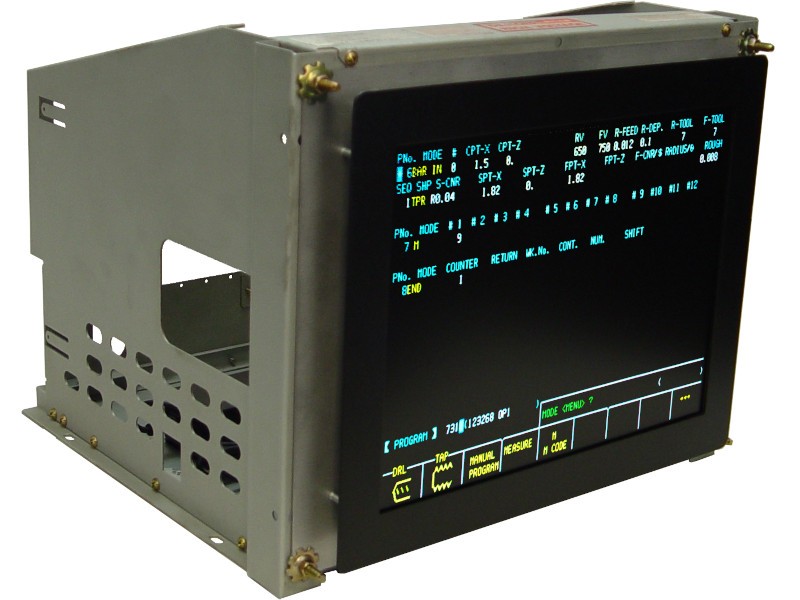

• Third, bolt the QES1512-231 12.1-inch LCD into the now-empty 14-inch CRT mounting holes.
• Fourth, mount the 14-inch CRT chassis back into your Makino EDNC32, EDNC43 or EDNC64 Control.

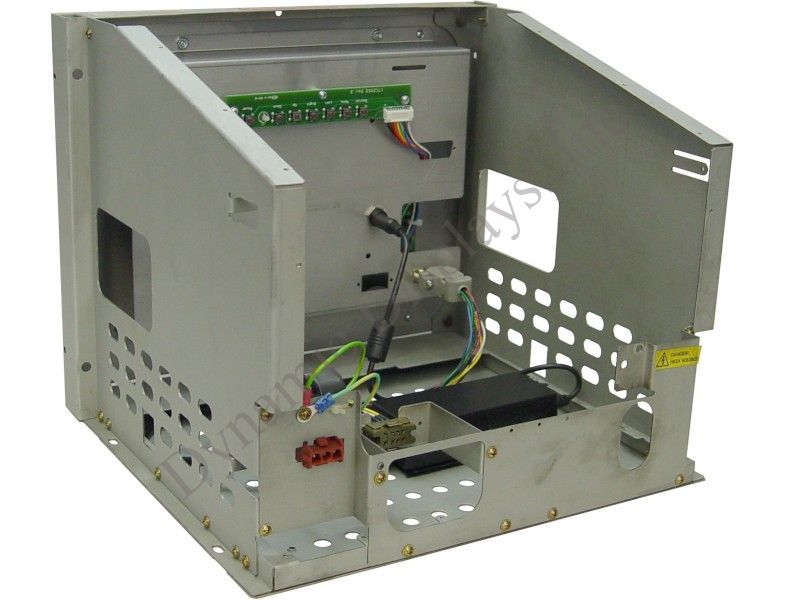

• Fifth, re-attach the HIROSE 8-pin video and the AMP 3-pin AC power connections.

The installation is complete. All you need to do next is power your equipment up and see the bright, clear images now displayed. The QES1512-231 LCD will auto-adjust to present the correct image. If the LCD needs further adjustment, we've provided on-screen display adjustment capability. The long-life (>50,000 hours) LCD backlight in the rugged, high-performance 12.1-inch Active Matrix Color TFT LCD will provide crisp, clear images for years to come. Don't delay. Replace the failed NEC DU-1437A-1B00 LCD in your Makino EDNC64 EDM with a new, reliable QES1512-231 LCD Flat Panel display today and extend the useful life of your CNC EDM Sinker equipment for years to come. Please also consider Dynamic Displays' many industrial LCD products for your other CNC monitor replacement needs.
