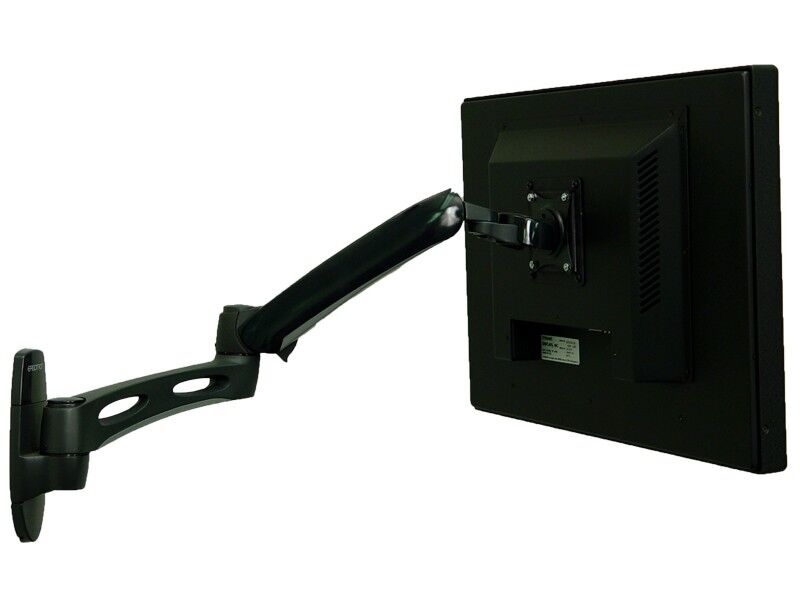

24″ MRD1824C-WM Wall Mount Series, Rugged MIL-SPEC COTS LCD Display

The MRD1824C-WM Series 24 inch Wall Mount COTS Military Displays are cost-effective Hi-Brite Monitors packaged in rugged, wall mount, all-metal frame enclosures with the designed-in flexibility to accommodate your specific customer requirements.

Our Military Rugged Displays (MRD) are designed with shock and vibration safeguards, provisions for extreme temperature operation, high moisture safeguards, as well as Electromagnetic Environmental Interference protection for use in extremely harsh weather conditions found in many Military Applications.

At Dynamic Displays we are dedicated to speed & honesty with our EZ-Quote system.


The MRD1824C-WM Series 24 inch Wall Mount COTS Military Display is a cost-effective Hi-Brite Monitor packaged in a rugged, wall mount, all-metal frame enclosure with the designed-in flexibility to accommodate your specific customer requirements. This durable LCD monitor is designed for use in demanding environments that require high-performance video capability that can operate in rough environments. Many COTS Military Displays typically require specific configuration customization before it can meet a specific application. The MRD-1824 Wall Mount Series was designed from the ground up to be extremely flexible in order to accommodate all known COTS Military LCD Display requirements. Our Military Rugged Display (MRD) LCDs are designed with shock and vibration safeguards, provisions for extreme temperature operation, high moisture safeguards, as well as Electromagnetic Environmental Interference protection for use in extremely harsh weather conditions found in many Military Applications. Though rugged enough for most Land-based and Shipboard Applications, the 24 inch MRD1824C-WM Wall Mounted Military Rugged display monitor is versatile, as well. With provisions for BNC Inputs and RS170 / RS343 Video Operation, the MRD1824C-WM COTS LCD Monitors allow for easy insertion into legacy technologies and reduces obsolescence risks. The target application platforms for the 24 inches MRD1824C-WM Wall Mounted Military Rugged display monitor include: Aircraft Simulator Displays, Ground Vehicles, and Mobile Shelters, Military & Aerospace Displays, Shipboard Automation Monitors, Surface Ships, US Navy Aircraft Traffic.

MRD1824C-WM Series Features

  • 24” High Bright Active Matrix TFT Display with LED Backlight
  • High Bright - 400 Nits Typical
  • High Contrast – 800:1 Typical
  • 15.75 to 100 KHz - Specially designed for Slow Scan Signals
  • RS-170 (525 Line) & RS-343 (875-Line) Interlace Formats
  • 90-264VAC Auto Ranging Internal AC Power Supply
  • Aspect Ratio: 1:1 or 4:3 (OSD Selection)
  • Convenient Front Controls
  • Image Size & Position Adjustment
  • Front Manual Full Range Brightness (Dimming) and Contrast Control
  • Full-Range Dimming to Black
  • Anti-Reflective LCD Bonding for Superior Optical Performance and Better Protection on Extreme Environments
  • Custom Designs Available; Including Spec, Color, Finish and Format
  • Designed, Engineered and Built to comply with Military Standards
  • Heavy Duty Aluminum Front Bezel
  • Heavy Duty Cold Roll Steel Chassis
  • VESA 100 Standard Mounting
  • Conformal Coating of Internal Assemblies to Enhance Ruggedization
  • Internal Ruggedized Construction

Other Options Include

  • Custom Designs based on Customer’s Exact Needs
  • Wireless Remote Control
  • 12V, 24V, 28 and 48V DC Input Voltage Options
  • Touch Systems: SAW, Resistive and Capacitive
  • NTSC/PAL (RCA Jack) and S-Video (4 Pin Mini Din) Option
  • CGA, EGA, MDA Input Video Option
