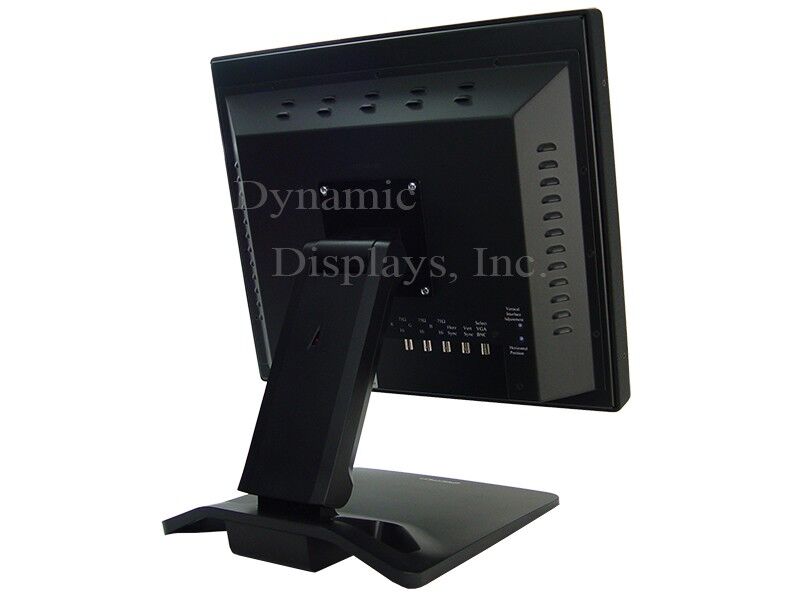

Rugged MRD1819-085 19” COTS Tabletop LCD Display - Rear View

19″ MRD1819-085 Color Desktop, COTS RUGGED LCD DISPLAY

Target application platforms for the MRD1819-085 Rugged LCD Military Display Monitors include: Surface Ships Displays, Air Traffic Control, Military Navigation Display Monitor and Commercial-off-the-shelf (COTS) Military Displays Applications.

Our 19” COTS Tabletop Rugged LCD Display (MRD-Series) was designed with shock and vibration safeguards provisions for extreme environments and designed to meet a wide variety of applications such as Shipboard, Airborne and Ground Mobile for use in extremely harsh conditions found in many rough COTS Military LCD Display Applications.

GET EZ QUOTE

At Dynamic Displays we are dedicated to speed & honesty with our EZ-Quote system.

Our Rugged 19 inch MRD1819-085 Color Desktop LCD Monitor Display (MRD-Series) was designed to withstand the intense shock and vibration demands found in a wide variety of applications such as Shipboard, Airborne, and Ground Mobile Military LCD Display Applications. This rugged COTS 19" display is capable of operating with legacy timing such as RS-170 (525 Line) and RS-343 (875-Line) Interlace formats. Also, NTSC/PAL Video (RCA Jack), S-Video (5 Pin Mini-Din) and VGA (HD15-DSub) Standard VESA Input Timings. With the availability of selecting aspect ratios of 1:1 or 4:3 on all video inputs through the use of the On Screen Display (OSD) Menu. The MRD1819-085 is a high performance 19” LCD Display, packaged in a heavy duty cold roll steel enclosure with heavy duty aluminum front bezel, internal rugged construction and bonded Anti-Reflective protective faceplate glass for superior optical performance and better protection in extreme environments. These features make this Rugged 19 inch MRD1819-085 Color Desktop LCD Monitor Display unit great for use in demanding applications that require high-quality graphics, video, and other RGB data on a single, rugged display.
Rugged MRD1819-085 19” COTS Tabletop LCD Display - Input Panel

Rugged MRD1819-085 19” COTS Tabletop LCD Display - Input Panel.

Brochure
2D Drawing
3D Drawing
Contact Us

MRD1819-085 Series Features

  • 19.0” SXGA Color TFT LCD with Solid State LED Backlight Module
  • High Bright Active Matrix TFT Display
  • 300 Nits. High Contrast – 2000:1 Typical
  • Bonded Anti-Reflective Protective Faceplate Glass for Superior Optical Performance and Better Protection on Extreme Environments.
  • RS-170 (525 Line) and RS-343 (875-Line) Interlace Formats.
  • 15.75 to 100 KHz -Specially designed for Slow Scan Signals - Legacy Timings.
  • 5 BNC - RGB Sync On Green, RGB Separate Composite Sync or RGB Separate Sync.
  • NTSC/PAL (RCA Jack) and S-Video (5 Pin Mini-Din). VGA HD-15D-Sub. Standard VESA Input Timings. Aspect Ratio: 1:1 or 4:3 (OSD Selection).
  • Vertical Interlace Adjust and Horizontal Position Adjustment.
  • Convenient Front Controls
  • Picture-In-Picture (PIP).
  • Picture-Outside-Picture (POP)
  • Full-Range Dimming to Black

Other Options Include

  • High Brightness 1,500 Nits TFT LCD Option
  • Anti-Reflective Protective Faceplate option
  • High Brightness TFT LCD Option – 1,500 Nits
  • Wireless Remote Control Option
  • S-Video Option (4 Pin Mini Din)
  • 91 Ohm Video Termination
  • 12VDC, 24VDC or 28VDC Input Voltage
  • 1:1 or 4:3 Aspect Ratio (OSD Selection)
  • Touch Screen: Resistive, Capacitive and SAW Option
  • Front Manual Full Range Brightness and Contrast Control (Dimming)
  • Conformal Coating of Internal Circuit Boards for Enhanced Ruggedization
  • Strengthened Glass Protection Option
  • Resistive and Capacitive Touch Screen Option
