8.4″ MRD1808-400 Dual Rackmount FLIR compatible LCD Monitor

Dynamic Displays’ sturdy rackmount LCD monitors are used in many military, industrial, manufacturing, and transportation applications and other uses that require bright, crisp images and versatile signal interfaces in severe environments.

MRD1808-400 Dual Rack Mount 8.4″ FLIR-compatible Monochrome LCD monitor.  The Dual 8.4″ Ruggedized Monitor is designed to be a Mil-Spec Compliant Display used for various Military applications.  If you’re looking for COTS Military Monitors that use FLIR – Forward Looking Infrared Imaging Systems, the MRD1808-400 series Rack Mount Military Display is an excellent choice for you.

GET EZ QUOTE

At Dynamic Displays we are dedicated to speed & honesty with our EZ-Quote system.

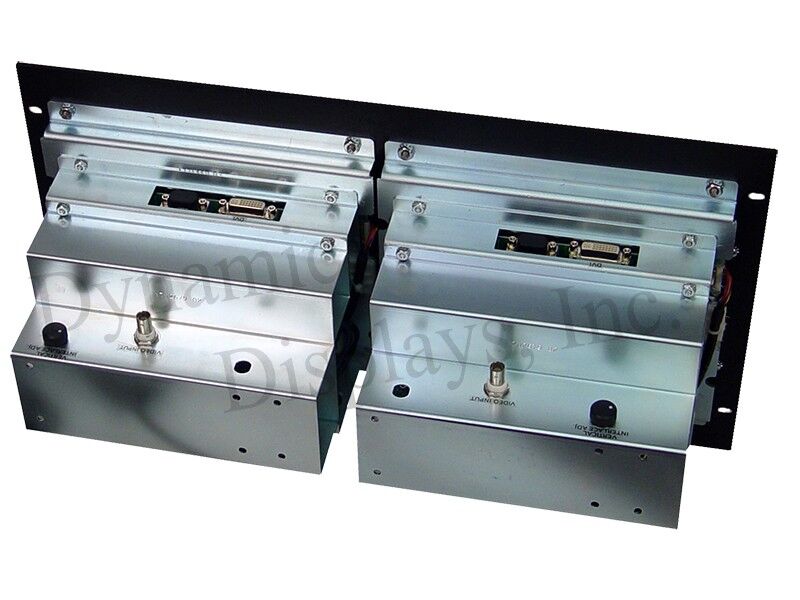

Dynamic Displays' rugged Dual 8.4 inch MRD1808-400 Rackmount FLIR Compatible LCD Monitor is designed to be a Mil-Spec Compliant Display for use in various Military FLIR-compatible applications that require a high-quality monochrome LCD Rack Mount monitor capable of accepting legacy RS-170 and RS-343 interlace video formats in a high-noise environment.  If you’re looking for COTS Military Monitors that use FLIR - Forward Looking Infrared Imaging Systems, the MRD1808-400 Dual 8.4 inch Rack Mount Military Display is an excellent choice for you. This COTS LCD Display monitor features two (2) high performance, 8.4-inch Active Matrix Color TFT LCD panels with reliable, high-bright LED backlights and Bonded Anti-Glare Protective Faceplate Glass for Superior Optical Performance and better protection in extreme environments.  The Dual 8.4-inch displays are mounted in a sturdy EIA RS-310 D 19" rackmount chassis. These premium displays accept the analog monochrome RS-170 and RS-343 Video input signal format on a single BNC and NTSC/PAL Composite Video (RCA Jack) and S-Video (4 Pin Mini-Din).
Brochure
2D Drawing
3D Drawing
Contact Us

MRD1808-400 Series Features

  • 8.4 In SVGA TFT LCD Display with Solid State LED Backlight.
  • 800 x 600 Native Resolution.
  • High Contrast: 600:1 Typical.
  • High Bright TFT Display: 450 Nits.
  • Wide Viewing Angle: 80R/80L – 80U/60L.
  • Bonded Anti-Glare Protective Faceplate Glass for Superior Optical Performance and Enhance Protection on Extreme Environments.
  • Analog RGB Sync On Green (SOG) – BNC.
  • NTSC/PAL Composite Video (RCA Jack) and S-Video (4 Pin Mini-Din).
  • RS-170 (525 Line) & RS-343 (875-Line) Interlace Formats.
  • 90-264VAC Auto Ranging Internal AC Power Supply.
  • Aspect Ratio: 1:1 or 4:3 (OSD Selection).
  • Extended Operating Temperature Rating: -30°C to +85°C.
  • Convenient Front Controls.
  • Internal Ruggedized Construction.
  • Conformal Coating of Internal Assemblies for Enhanced Ruggedness.
  • Rugged Industrial-Grade Steel Chassis.
  • Heavy Duty Aluminum Front Bezel.
  • Heavy Duty Cold Roll Steel Chassis.
  • EIA RS310 D – 19” Rack Mount Standard.
  • Front Mounted Handles.

Other Options Include

  • High Brightness TFT LCD Option – 1000 Nits.
  • Custom Designs based on Customer’s Exact Needs.
  • MIL-Spec Compliance (MIL-STD-461E, MIL-STD-810F).
  • 12VDC, 24VDC, 28VDC, and 48VDCInput Voltage.
  • 12VDC, 24VDC or 28VDC Input Voltage.
  • 1:1 or 4:3 Aspect Ratio (OSD Selection).
  • Differential Monochrome Video Input.
  • 91 Ohm Video Termination.
  • Wireless Remote Control.
  • Touch Screen: Resistive, Capacitive and SAW.
