Motorola MD2000-190, 9 In Monochrome CRT Monitor Replacement
Model QES1508-074 8.4 In LCD replaces MD2000-190 9 In Monochrome CRT Monitors manufactured by Display Technologies and Motorola.
QES1508-074 8.4-inch LCD upgrade for Motorola MD2000-190 9-inch monochrome CRT monitors.
You have an important job coming up and the Motorola MD2000-190 CRT monitor in your Sloan Dektak Wafer Tester is acting up. You know it needs replacing because when that job lands, you can't afford any down time. You could gamble on some re-furbished display from Ebay, but what's the warranty? You could buy something cheap from China, but where's your support? Thankfully, there's another option. Why not upgrade the Motorola MD2000-190 9-inch monochrome CRT monitor in your Bruker/VEECO Sloan Technology Dektak Wafer Tester with a brand-new Dynamic Displays' model QES1508-074 8.4" LCD? The QES1508-074's rugged, open frame steel frame bolts into Motorola / Display Technology MD2000-190 chassis in place of the 9"-inch CRT, and the 20-pin, dual-row Cinch video / power connector matches your current cable. No need to cut and splice wires.Installing the QES1508-074 into your Bruker/VEECO Dektak Wafer Tester:
Installing the QES1508-074 into your equipment takes just 5 simple steps:
1 - Disconnect and remove the old MD2000-190 9-inch monochrome CRT monitor chassis from your Bruker/Sloan Technology Dektak control.
2 - Remove the old 9-inch CRT and electronics from the chassis.
3 - Screw our model QES1508-074 8.4-inch LCD into the now-empty CRT mounting holes.
4 - Re-install the Motorola MD2000-190 chassis into your Dektak Wafer Test equipment.
5 - Reconnect the power/video input cable to the the 20-pin, dual-row Cinch connector.
That's all it takes. The old, faded (or failed) Motorola MD2000-190 monitor in your Bruker/VEECO Dektak Wafer Tester has been replaced with a factory-fresh QES1508-074 LCD display that was built in America's heartland and comes with a 2-year factory warranty. The high-performance, 8.4-inch QES1508-074 LCD monitor with its long-life (50,000-plus hours) LED Backlight will provide bright, crisp images for years to come.The Dynamic Displays Advantage
- Made in the USA: Our products are designed and manufactured in Eau Claire, WI, USA.
- Our products include a 2-year warranty.
- 100% satisfaction guaranteed.
- Proud and proven: We have been in business since 1991 as an industrial manufacturer with a proven, tangible track record.
- Human interface: Our bilingual (English/Spanish) technical support staff is highly responsive and based in the United States

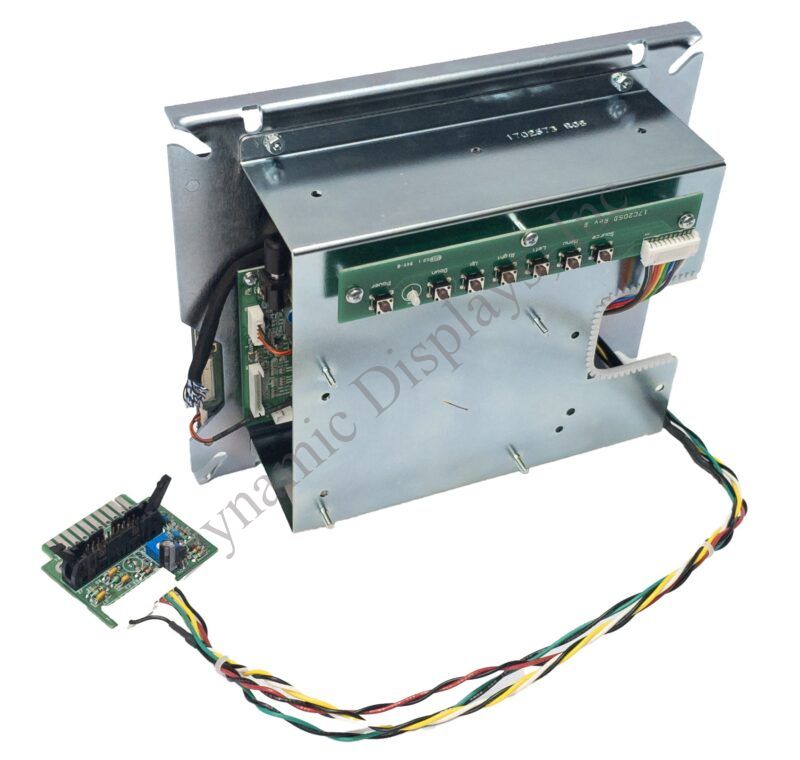

Motorola MD2000-190 CRT Upgrade - Rear View.
