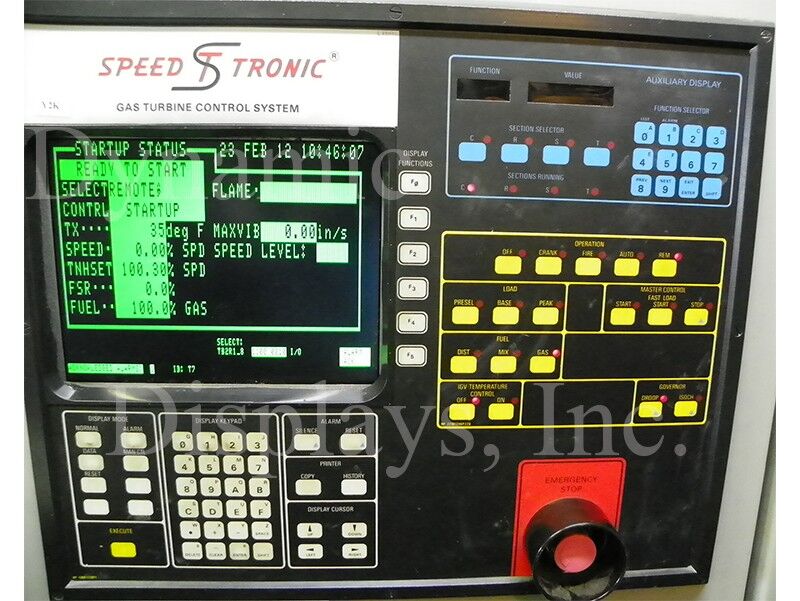

Replacement for GE Mark IV Speed Tronic - Gas Turbine Control
GE 277A5758G2 12-inch Monochrome CRT Monitor replacement LCD Rear View

Motorola DS3000-340A 12 In Monochrome CRT Monitor Replacement

Model QES1510-026 10.4 In LCD replaces Motorola DS3000-340A 12 In Monochrome CRT Monitor used in GE Mark IV Speedtronic.

GET EZ QUOTE

At Dynamic Displays we are dedicated to speed & honesty with our EZ-Quote system.

When the Motorola DS3000-140A or Motorola DS3000-340A 12 inch Mono CRT monitor in your SpeedTronic Gas Turbine Control needs replacing, take a look at the QES1510-026 Industrial LCD monitor. Why bother with used or re-furbished equipment with limited 30 or 90-day warranties? Why gamble on products purchased from Ebay, with unknown manufacturers and chancy warranties? Instead, when the Motorola DS3000-340A 9" green-phosphor CRT monitor starts acting up, don't just replace it. Upgrade it with our QES1510-026 Industrial LCD monitor. This rugged LCD upgrade display attaches easily to the 9-inch CRT mounting holes of the existing monitor frame and is plug-and-play compatible with the original 12 inch 110° CRT Display. In addition, the 10-pin edge card video connector and pigtail power input connections of this new 10.4 inch LCD monitor mates with your existing cables and its circuitry and firmware have been engineered specifically for plug and play in the GE Mark IV SpeedTronic - Gas Turbine Control System. Just plug the QES1510-026 LCD display in and you are up and running. Upgrading your legacy Motorola DS3000 Series CRT monitor with the QES1510-026 LCD Replacement Monitor not only extends the life of your automation investment, it increases productivity, reduces waste, and eliminates downtime. With brighter, sharper, and crisper images provided by the new LCD, your operators no longer need to squint to view dim or out-of-focus screen data, resulting in fewer operator errors and less wasted time and materials. Our Color Selection Technology allows you to select between Green, Amber or White images. With solid-state electronics and a long-lived LED backlight, downtime due to aging monitor repairs is no longer a concern and you can continue to rely on your older machine with minimal expense and effort. Our QES1510-026 LCD replaces the following legacy products:
  • Allen Bradley 1784-T36
  • Allen Bradley 7300-ACRT
  • Ball TV-120
  • Kristel 25RE-A42
  • Display Technologies DS3000-140A
  • Display Technologies DS3000-340A
  • Motorola DS3000-140A
  • Motorola DS3000-340A

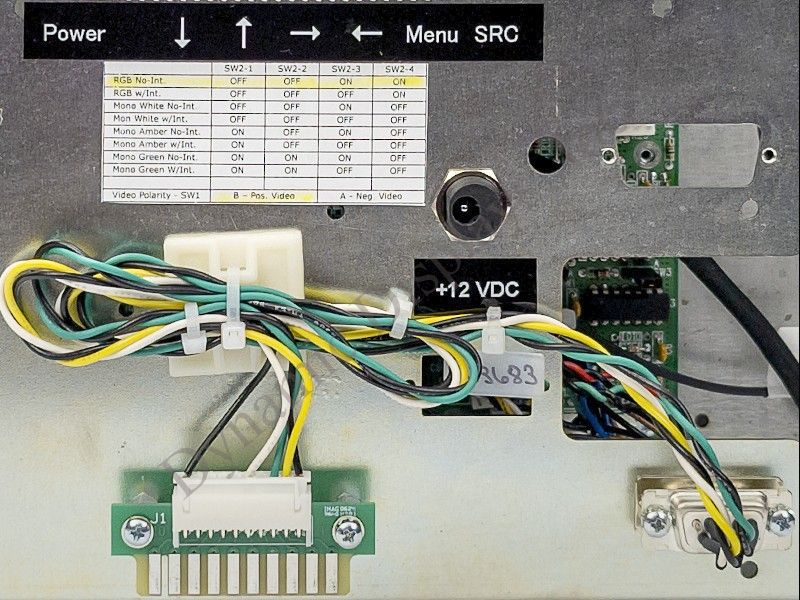

https://dynamicdisplay.com/wp-content/uploads/2017/02/QES1510-026-Interface.jpg?v=1755266113 Equivalent Model Numbers: DS3000140A, DS3000_140A, DS3000 140A, Motorola DS3000140A, Motorola DS3000_140A, Display Tech DS3000 140A, DS3000340A, DS3000_340A, DS3000 340A, Motorola DS3000340A, Display Tech DS3000_340A, Motorola DS3000 340A
Brochure
2D Drawing
Contact Us

QES1510-026 Series Features

  • Replacement LCD for Motorola DS3000-140A and DS3000-340A 12" monochrome CRT Monitors
  • Replacement LCD for Display Tech DS3000-140A and DS3000-340A 12" monochrome CRT Monitors
  • Drop in replacement for GE Mark IV Speed Tronic - Gas Turbine Control System
  • 10 Pin Edge Input video Connector matches DS3000-140A and DS3000-340A video input
  • 110-240VAC Universal Power Supply with VESA Power Management
  • Power Requirements: 110-240VAC @ 1 Amp or 12Vdc @ 3.4A
  • Color Selection between Green, Amber or White images

Other Options Include

  • Anti-Reflective Protective Faceplate
  • Strengthened Glass Protection
  • Wireless Remote Control
  • Amber or white color
