MF-1481EZ-IP-IND MONITOR UPGRADE

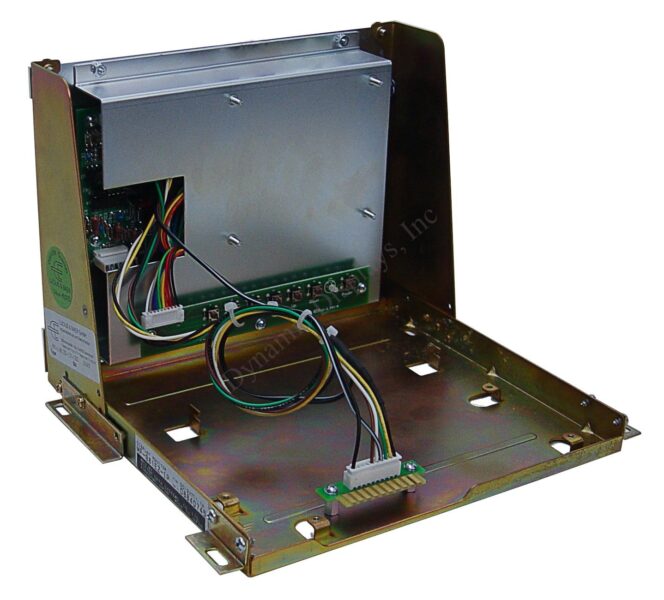

Our QES1508-120 high-performance, 8.4-inch Active Matrix TFT LCD monitor mounts onto the mounting holes of the original Lucius and Baer  MF-1481EZ-IP-IND 9 In CRT Monitor and has the same 10-pin input connections.

---

Lucius & Baer Monitor MF-1481EZ-IP-IND

When the Lucius & Baer 9-inch MF-1481EZ-IP CRT Monitor in the Lucius And Baer multi spindle lathe CNC control fails and you need to find a drop-in replacement monitor quickly, look no further. We have the perfect solution for you.  The rugged, open-frame steel chassis of Dynamic Displays QES1508-120 high-performance, 8.4-inch Active Matrix TFT LCD monitor will drop right into the original Lucius & Baer MF-981EZ-IP 9-inch CRT mounting holes, making it unnecessary to replace or make expensive modifications to the original Lucius & Baer chassis. Furthermore, the QES1508-120 operates at 12VDC and accepts the Monochrome TTL video signals via the same style 10-pin edge connector used by the original MF-1481EZ-IP VRT monitor in your Lucius & Baer CNC Machine control for upgrade, so there's no need for signal adapters of any sort.  Featuring 600:1 contrast ratio and 450 nits brightness, the rugged QES1508-120 TTL LCD TFT display is actually an upgrade for your legacy Lucius & Baer CRT display! If you are uncomfortable with the prospect of upgrading your Lucius & Baer MF-1481EZ-IP-IND CRT Monitor yourself, Dynamic Displays can perform the retrofit at no cost to you. Just give us a call at 715-835-9440 or email us at [email protected]. Victor Data Systems Monitor MF-981EZ-IP Features:

• The QES1508-120 Upgrade LCD drops directly into the CRT mounting holes of the Lucius & Baer MF-1481EZ-IP Monitor chassis
• Input Video: TTL Monochrome with Separate Sync
• Input Connector: 10 Pin Edge Connector
• Input Voltage: 12VDC
• Input Video: TTL Monochrome with Separate Sync
• High Brightness – 450 Cd/M2 Typical
• High Contrast – 600:1 Typical
• Rugged Cold Roll Steel Open-Frame Chassis

DYNAMIC DISPLAYS ADVANTAGE

• Made in the USA: Our products are designed and manufactured in Eau Claire, WI, USA.
• Our products include a 2-year warranty.
• 100% satisfaction guaranteed.
• Proud and proven: We have been in business since 1991 as an industrial manufacturer with a proven, tangible track record.
• Human interface:
• Our bilingual (English/Spanish) technical support staff is highly responsive and based in the United States.

Equivalent Models: MF-981EZ-IP, MF981EZIP, MF-981JZ-IP, MF981JZIP, MF-1481EZ-IP, MF1481EZIP, MF-1481JZ-IP, MF1481JZIP, Hitachi Seiki DBM-091, Hitachi Seiki DBM091
