FANUC A61L-0001-0077, A61L-0001-0078 & A61L-0001-0087 COLOR MONITOR Replacement Monitor.

Matsushita TX-1204,
12 In RGB CRT Display Replacement

Model QES1510-032 10.4 In LCD replaces Matsushita (Panasonic) TX-1204, 12 In RGB CRT Displays used in Fanuc 3, 3m, 3t Series.

GET EZ QUOTE

At Dynamic Displays we are dedicated to speed & honesty with our EZ-Quote system.

If you’re having trouble finding an affordable replacement monitor for your failed A61L-0001-0087, A61L-0001-0078, or A61L-0001-0077 Fanuc Monitor or a 12 inch Matsushita TX-1204 display, Dynamic Displays has a replacement solution for you. Our QES1510-032 12-inch LCD display is a direct replacement for every model of 12” Color Fanuc CRT Monitor used in the legacy Fanuc 3, 3t, 3m, 10 and 11 Series Controls.

The QES1510-032 10.4-inch LCD Display replaces the following 12” Color Fanuc CRT Monitor models: A61L-0001-0077 Fanuc monitor, A61L-0001-0078 Fanuc monitor and A61L-0001-0087 Fanuc monitor, Matsushita TX-1204 Monitor, Matsushita TX-1204AC monitor, Matsushita TX-1208AA Monitor Replacement.

FANUC A61L-0001-0077, A61L-0001-0078, A61L-0001-0087, Matsushita TX-1204, Matsushita TX-1204AC & Matsushita TX-1208AA Color Monitor Replacement Monitor.

QES1510-032 - FANUC A61L-0001-0077, A61L-0001-0078, A61L-0001-0087, Matsushita TX-1204, Matsushita TX-1204AC & Matsushita TX-1208AA Color Monitor Replacement Monitor.



Equivalent Models:  A61L-0001-0077, A61L00010077, A61L-0001-0078, A61L00010078, A61L-0001-0087, A61L00010087, TX-1204, TX1204, TX-1204AC, TX1204AC, TX-1208AA, TX1208AA, TX-1208-AA
Brochure
2D Drawing
Contact Us

QES1510-032 Series Features

  • Matsushita TX-1204 12” CRT Monitor Replacement
  • Fanuc A61L-0001-0077 12” CRT Monitor Replacement
  • Fanuc A61L-0001-0078 12” CRT Monitor Replacement
  • Fanuc A61L-0001-0087 12” CRT Monitor Replacement
  • Matsushita TX-1204AC 12” CRT monitor Replacement
  • Matsushita TX-1208AA 12” CRT Monitor Replacement
  • Heavy Duty Stainless Steel Chassis drops directly into the mounting holes of the a 12” CRT Monitor
  • RGB TTL video Input meets Fanuc 3, 3t, and 3m Series and 10 and 11 Series control timing standards

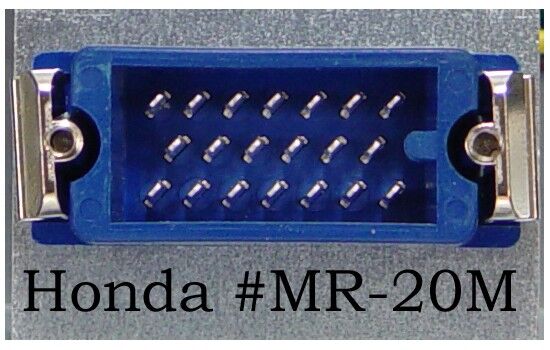

  • Hirose (Honda) 20 Pin input video connector
  • Power Requirements: 24 VDC (19-35V) @ 1.6 Amp max

Other Options Include

  • Anti-Reflective Protective Faceplate
  • Strengthened Glass Protection
  • Wireless Remote Control
