Matsushita TR-9DK1-A Replacement Monitor

Model QES1508-107 8.4 In LCD replaces Matsushita TR-9DK1-A or TR-9DK1, 9 In CRT Monitor used in Fanuc 6, 6L, and 6M.

At Dynamic Displays we are dedicated to speed & honesty with our EZ-Quote system.

Matsushita TR-9DK1-A Replacement, 9 In CRT Monitor

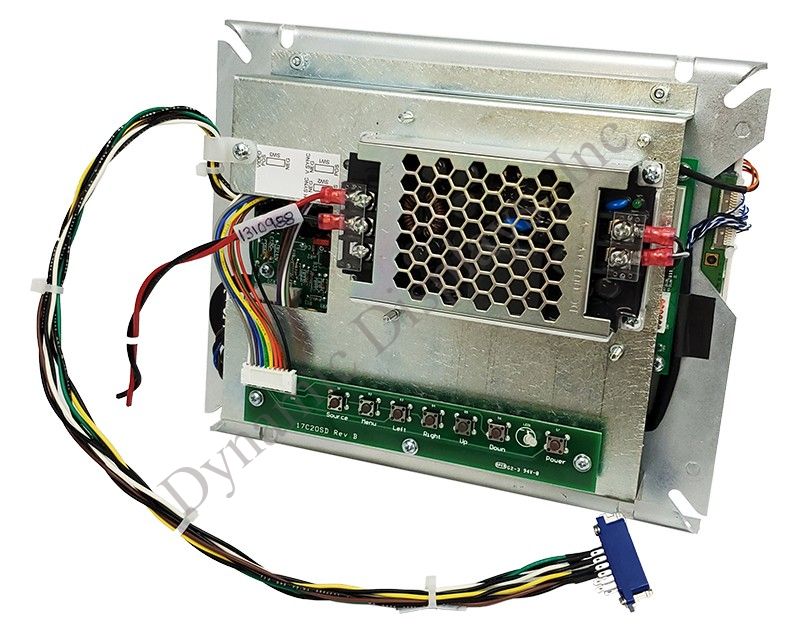

If the Matsushita TR-9DK1-A Monitor in your CNC Machine control has failed and you need to quickly find a drop-in replacement monitor, look no further,   Our QES1508-107 8.4" LCD display is a direct replacement for the 9-inch CRT monitor used in Fanuc 6, 6L, and 6M Series CNC Machine controls. The rugged, open-frame steel chassis of this high-quality LCD display is designed to drop right into the mounting holes of the original 9-inch monochrome CRT, making it unnecessary to replace or make expensive modifications to the original CRT monitor chassis. This Matsushita TR-9DK1-A Monitor replacement accepts the TTL video signals used in Fanuc 6, 6L, and 6M CNC Machine control with no need for signal adapters of any sort.  This unit has been optimized to operate at the FANUC monitor timing but also operates with a variety of other TTL legacy monitor timing as well. Our QES1508-107 is a high-performance, 8.4-inch Active Matrix TFT LCD monitor with an LED Backlight featuring 600:1 contrast ratios and 450 nits brightness, making it an excellent replacement monitor for your legacy 9-inch Matsushita TR-9DK1A CRT monitor. Matsushita TR-9DK1-A Replacement Monitor Features:
  • Mounts into the original mounting holes of Fanuc Matsushita TR-9DK1-A
  • Matsushita TR-9DK1A CRT Replacement Monitor
  • Interface Signal Connectors: Honda #MR-20M
  • Operating Voltage: 9-36 VDC
  • Rugged Cold Roll Steel Open-Frame Chassis
  • 8.4-Inch SVGA TFT LCD with reliable LED Backlight
  • Input Video: TTL Monochrome with Separate Sync
  • LCD Display Area: 6.7” (H) x 5” (V), 8.4-Inch Diagonal
  • High Brightness – 450 Cd/M2 Typical
  • High Contrast – 600:1 Typical
Fanuc A61L-0001-0072 or Matsushita TR-9DK1-A, 9 IN CRT MONITOR REPLACEMENT LCD - Customer Chassis

Fanuc A61L-0001-0072 or Matsushita TR-9DK1-A, 9 IN CRT Monitor Replacement LCD - Customer Chassis


Equivalent Models: Fanuc A61L-0001-0072, Fanuc A61L00010072, Matsushita TR-9DK1-A, MatsushitaTR-9DK1_A, Matsushita TR-9DK1A, Matsushita TR9DK1A, Matsushita TR-9DK1, Matsushita P/N: TBM80077

QES1508-107 Series Features

  • Replaces Matsushita TR-9DK1-A, 9-inch Green CRT monitor.
  • Replaces Matsushita TR-9DK1, 9-inch Green CRT monitor.
  • Replaces Fanuc A61L-0001-0072 9-inch Green CRT monitor.
  • Hirose (Honda) 20 Pin input video connector.
  • Designed For Fanuc Fanuc 6, 6L and 6M Control Panels.
  • 8.4 inch SVGA TFT LCD with reliable LED Backlight.
