Matsushita P/N: TBM81888 REPLACEMENT MONITOR

Model QES1508-125 8.4 In LCD replaces Matsushita P/N: TBM81888, 9 In Monochrome CRT Monitor used in Fanuc 6B, 6T, 6MB, 6TB, 6mBll, and 6tBll Series Control Panels.

At Dynamic Displays we are dedicated to speed & honesty with our EZ-Quote system.


Matsushita P/N: TBM81888 REPLACEMENT MONITOR, 9 IN MONOCHROME CRT MONITOR UPGRADE

If you need a drop-in replacement monitor for the Matsushita P/N: TBM81888 Monochrome CRT monitor installed in your FANUC 6B, 6T, 6MB, 6TB, 6mBll, and 6tBll Series CNC Machine control, look no further. Our QES1508-125 is a rugged high performance, 8.4-inch monochrome LCD monitor specifically designed to replace any 9-inch Matsushita P/N: TBM81888 Monochrome CRT monitor. Its rugged, open-frame steel chassis is designed to drop right into the mounting holes of the original Fanuc 9-inch color CRT, making it unnecessary to replace or make expensive modifications to the original CRT monitor chassis.

The 20-pin Honda connector of the QES1508-125 accepts the FANUC 6B, 6T, 6MB, 6TB, 6mBll, and 6tBll Series CNC Machine control monochrome TTL video signals with no need for signal adapters of any sort. This unit has been optimized to operate at the FANUC monitor timing but also operates with a variety of other TTL legacy monitor timing as well. Featuring 600:1 contrast ratios and 450 nits brightness, the rugged QES1508-125 monochrome LCD TFT monitor is an excellent replacement monitor for your legacy FANUC or Matsushita monochrome 9-inch CRT display.

If you are uncomfortable with the prospect of upgrading your Matsushita P/N: TBM81888 yourself, Dynamic Displays can perform the retrofit at no cost to you. Just give us a call at 715-835-9440 or email us at [email protected].

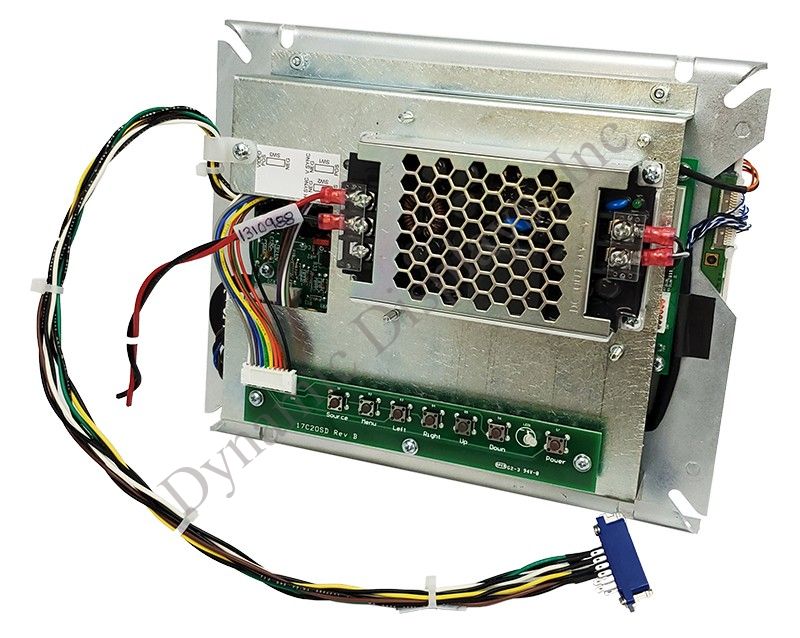

Fanuc A61L-0001-0076 or Matsushita TR-9DK1B, 9 In Monochrome CRT monitor replacement - Customer Provided Chassis.

Fanuc A61L-0001-0076, Matsushita TR-9DK1B, and Matsushita P/N: TBM81888, 9 In Monochrome CRT monitor replacement - Customer Provided Chassis.

Matsushita P/N: TBM81888 CRT REPLACEMENT DISPLAY FEATURES:

  • Mounts into the original mounting holes of Matsushita P/N: TBM81888
  • Input Video: TTL Monochrome with Separate Sync.
  • Operating Voltage: 9 to 36 VDC
  • Rugged Cold Roll Steel Open-Frame Chassis
  • 8.4-Inch SVGA TFT LCD with reliable LED Backlight
  • LCD Display Area: 6.7” (H) x 5” (V), 8.4-Inch Diagonal
  • High Brightness – 450 Cd/M2 Typical
  • High Contrast – 600:1 Typical
Equivalent Models: Fanuc A61L-0001-0076, Fanuc A61L00010076, Matsushita TR-9DK1-B, Matsushita TR-9DK1B, Matsushita TR9DK1B, Matsushita P/N: TBM81888

QES1508-125 Series Features

  • Matsushita P/N: TBM81888 Legacy 9-inch CRT monitor Replacement
  • Matsushita Electric TR-9DK1-B Legacy 9-inch CRT monitor Replacement
  • Fanuc A61L-0001-0076 9 Inch CRT monitor Replacement
  • Hirose (Honda) 20 Pin input video connector
  • TTL video Input meets Fanuc Series 6B, 6T, 6MB, 6TB, 6mBll and 6tBll timing
