Kristel Displays Model C72304 9 In Color CRT Monitor replacement

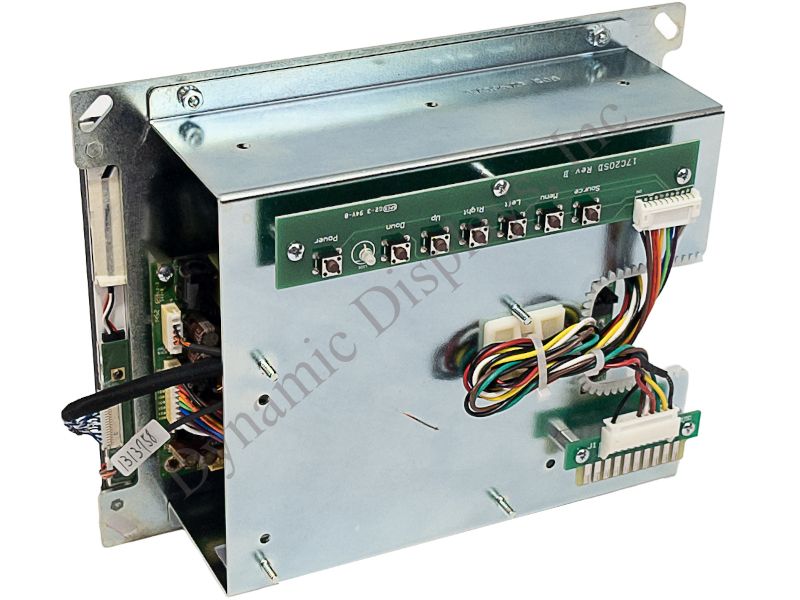

Model QES1508-108 8.4 In LCD replaces Kristel Model C72314 9 In Color CRT Monitors used in Burny 5 Controllers.

---

Model QES1508-108 8.4-inch LCD replaces Kristel Model C72304 9-inch color CRT monitors in Burny 5 CNC conytrols.

Has the Kristel Model C72304 9" monochrome CRT monitor in your Burny 5 CNC Control failed or does it simply need replacing? Are you wary of using refurbished old CRT replacements or cheap Chinese displays with unknown warranties and no support. Weary of splicing wires and changing connectors? Thankfully, there's another option. Dynamic Displays' Model QES1508-108 8.4-inch LCD is a direct replacement for the Kristel Model C72304 9" color CRT monitor used in your Burny 5 CNC Controls. Our QES1508-108 8.4-inch LCD uses an industrial-grade LCD with a long life (>50,000 hours) LCD backlight to provide a simple, reliable, cost-effective, easy-to-install CRT replacement you are looking for. Proudly manufactured in America's heartland and backed by a 2-year factory warranty and bi-lingual (English / Spanish) customer support, Dynamic Displays' Model QES1508-108 8.4 inch LCD has the same 8-pin Burndy video input format as your old Kristel Model C72304 9-inch CRT display.

Installing model QES1508-108 into your Kristel C72304 9-inch CRT monitor Chassis:

You can install the QES1508-108 8.4-inch LCD monitor into your existing Burny 5 CNC control with just a few easy steps.

• First, disconnect the AC power and the 8-pin Burndy video connection and remove the 9-inch CRT chassis from your Burny 5 machine control.
• Second, remove the old 9-inch CRT and electronics from the Kristel Model C72304's chassis.
• Third, screw the QES1508-108 8.4-inch LCD into the now-empty 9-inch CRT mounting holes.
• Fourth, mount the 9-inch CRT chassis back into your Burny 5 CNC control.
• Fifth, re-attach the the 8-pin Burndy video and the AC power connections.

The installation is complete. All you need do next is power your equipment up and see the bright clear images now displayed. The LCD will auto-adjust to present the correct image. If the LCD needs further adjustment, we've provided on-screen-display adjustment capability. The long life (>50,000 hours) LCD backlight in the rugged, high-performance 8.4-inch Active Matrix Color TFT LCD will provide crisp, clear images for years to come. Don't delay. Upgrade the low-performance Kristel Model C72304 9-inch CRT display in your Burny 5 control with a new, reliable QES1508-108 LCD Flat Panel display today and extend the useful life of your CNC shape cutting equipment for years to come. Please also consider Dynamic Displays' many industrial LCD products for your other CNC monitor replacement needs

The Dynamic Displays Advantage

• Made in the USA: Our products are designed and manufactured in Eau Claire, WI, USA.
• Our products include a 2-year warranty.
• 100% satisfaction guaranteed.
• Proud and proven: We have been in business since 1991 as an industrial manufacturer with a proven, tangible track record.
• Human interface: Our bilingual (English/Spanish) technical support staff is highly responsive and based in the United States

Equivalent Models: Sony Model SCC-572B-A
