Kristel 95HS-FD-2 9-inch monochrome CRT monitor replacement LCD

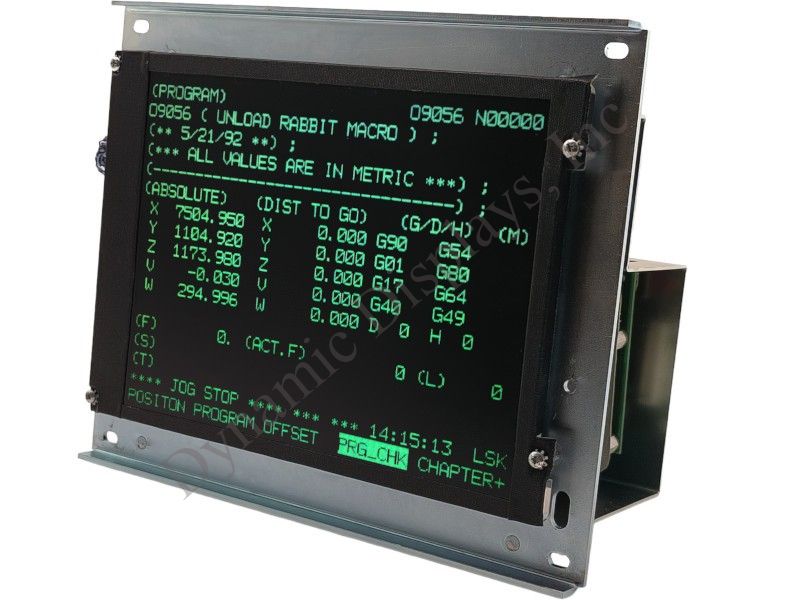

Model QES1508-097 8.4-inch LCD replaces Kristel 95HS-FD-2 9-inch monochrome CRT monitors in CNC machine controls

---

Model QES1508-097 8.4-inch LCD replaces Kristel 95HS-FD-2 9-inch monochrome CRT monitors in CNC machine controls.

You have an important job coming up and the Kristel 95HS-FD-2 9" monochrome CRT monitor in your CNC Machine Control is dim and nearly impossible to read. You know it needs replacing - and soon - because when that job lands you can't afford any down time. You could gamble on some re-furbished display from Ebay, but what's the warranty? You could buy some cheap display from China, but where's your support? And even worse, if it fails will the company even be around anymore? Thankfully, there's another option. You can upgrade the Kristel 95HS-FD-2 9-inch monochrome (green) CRT monitors in your CNC Control with a Dynamic Displays Model QES1508-097 8.4-inch LCD. Our model QES1508-097 8.4-inch with its industrial-grade LCD and long life (>50,000 hours) LED backlight is the simple, reliable, cost-effective, easy-to-install LCD upgrade for the Kristel 95HS-FD-2 9" green-phosphor CRT monitors used in Cincinnati Shears, Charmille RoboForm 200 EDM, and many other CNC Controls. Proudly manufactured in Eau Claire, Wisconsin, and backed by a 2-year factory warranty and bi-lingual (English / Spanish) customer support, Dynamic Displays' Model QES1508-097 8.4 inch LCD accepts the +12VDC power and monochrome composite video input with the same 10-pin edge-card connection connector as your old Kristel 95HS-FD-2 9-inch monochrome CRT display.

Upgrading the Kristel 95HS-FD-2 9-inch CRT monitor with model QES1508-097:

You can install the QES1508-097 8.4-inch LCD monitor into your existing CNC machine control with just a few easy steps.

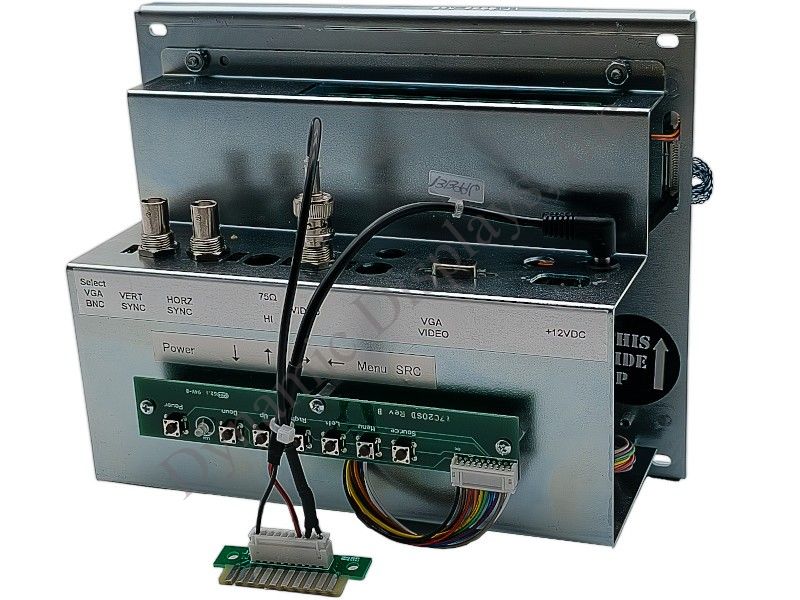

• First, disconnect disconnect the 10-pin edge-card video  / power input connection and remove the Kristel 95HS-FD-2 9-inch CRT chassis from your CNC control.
• Second, remove the old 9-inch CRT and electronics from the Kristel 95HS-FD-2's chassis.
• Third, mount the QES1508-097 8.4-inch LCD into the now-empty 9-inch CRT mounting holes and place the 10-pin edge-card video  / power where desired.
• Fourth, re-install the upgraded Kristel 95HS-FD-2 9-inch CRT chassis into your machine control.
• Fifth, plug your 10-pin edge-card video / power cable into the QES1508-097 8.4-inch LCD monitor input connections.

The installation is complete! All you need do next is power your equipment up and see the bright clear images now displayed. The QES1508-097 LCD will auto-adjust to present the correct image. If the image needs further adjustment, we've provided on-screen-display adjustment capability.

The Dynamic Displays Advantage

• Made in the USA: Our products are designed and manufactured in Eau Claire, WI, USA.
• Our products include a 2-year warranty.
• 100% satisfaction guaranteed.
• Proud and proven: We have been in business since 1991 as an industrial manufacturer with a proven, tangible track record.
• Human interface: Our bilingual (English/Spanish) technical support staff is highly responsive and based in the United States

Equivalent Models:

• Display 2000 TC09M16C0M0
• Omni Vision LP0915GG4-P31
