Hitachi Seiki NM1231-A11 12 Inch Monochrome CRT Monitor Replacement

Model QES1510-021 10.4 In LCD replaces Hitachi Seiki NM1231-A11, 12 In Monochrome CRT Monitors used in Mori Seiki VK65.

---

Model QES1510-021 10.4-inch LCD replaces Hitachi Model NM1231-A11 12-inch monochrome (green) CRT monitors in Mori Seiki VK65 CNC Controls.

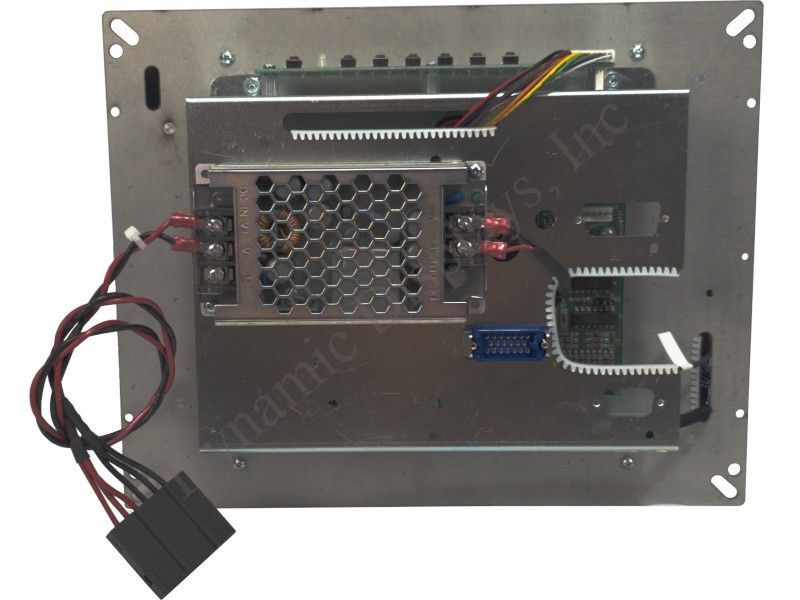

Does the Hitachi Model NM1231-A11 12" monochrome CRT monitor in your Mori Seiki VK65 CNC VMC need replacing? Are you wary of using old, refurbished CRT replacements or cheap Chinese displays with unknown warranties and no support. Are you tired of splicing wires and changing connectors? Thankfully, there's another option. Dynamic Displays' Model QES1510-021 10.4-inch LCD is a direct replacement for the Hitachi NM1231-A11 12" color CRT monitors used in many Mori Seiki VK65 CNC Vertical Machining Centers. Our QES1510-021 10.4-inch LCD uses an industrial-grade LCD with a long life (>50,000 hours) LCD backlight to provide the simple, reliable, cost-effective, easy-to-install CRT replacement you are looking for. Proudly manufactured in America's heartland and backed by a 2-year factory warranty and bi-lingual (English / Spanish) customer support, Dynamic Displays' Model QES1510-021 10.4 inch LCD has the same 16-Pin Honda video and 6-pin power connectors as your old Hitachi NM1231-A11 12-inch CRT monitor and mounts into the Toshiba E2710PCB-SDHT 12-inch CRT mounting holes for seamless integration. Proudly manufactured in Eau Claire, Wisconsin, the QES1510-021 10.4-inch monitor replacement LCD provides a reliable, cost-effective, simple, easy-to-install way to extend the useful life of your existing Mori Seiki CNC machine control. Backed by a 2-year factory warranty and bi-lingual (English / Spanish) customer support, Dynamic Displays' Model QES1510-021 10.4 inch LCD is completely compatible with your old Hitachi NM1231-A11 12-inch CRT display, has the same 16-Pin Honda video input format, and operates on with any power input from 9Vdc to 36Vdc .

Installing model QES1510-021 into your Hitachi NM1231-A11 12-inch CRT monitor Chassis:

You can replace the Toshiba E2710PCB-SDHT 12-inch CRT in your existing Mori Seiki VK65 VMC control with our QES1510-021 10.4-inch LCD monitor in just a few easy steps.

• First, disconnect the 6-pin DC power and the 16-pin Honda connection and remove the 12-inch CRT chassis from your Mori Seiki VK65 machine control.
• Second, remove the old Toshiba E2710PCB-SDHT 12-inch CRT and electronics from the Hitachi NM1231-A11's chassis.
• Third, screw the QES1510-021 10.4-inch LCD into the now-empty 12-inch CRT mounting holes.
• Fourth, mount the 12-inch CRT chassis back into your Mori Seiki VK65 CNC control.
• Fifth, re-attach the the 16-pin Honda video and the 6-pin DC power connections.

The installation is complete. No need to cut or splice wires. All you need do next is power your VMC up and see the bright clear images now displayed. The LCD will auto-adjust to present the correct image. If the LCD needs further adjustment, we've provided on-screen-display adjustment capability. The long life (>50,000 hours) LCD backlight in the rugged, high-performance 10.4-inch Active Matrix Color TFT LCD will provide crisp, clear images for years to come. Don't delay. Upgrade the low-performance Hitachi NM1231-A11 12-inch CRT display in your Mori Seiki VK65 Vertical Mill control with a reliable new QES1510-021 LCD Flat Panel display today and extend the useful life of your production Milling equipment for years to come. Please also consider Dynamic Displays' many industrial LCD products for your other CNC monitor replacement needs

The Dynamic Displays Advantage

• Made in the USA: Our products are designed and manufactured in Eau Claire, WI, USA.
• Our products include a 2-year warranty.
• 100% satisfaction guaranteed.
• Proud and proven: We have been in business since 1991 as an industrial manufacturer with a proven, tangible track record.
• Human interface: Our bilingual (English/Spanish) technical support staff is highly responsive and based in the United States

Follow this link to see a searchable list of Industrial Replacement Monitors
