Fanuc A02B-0120-C131/TAR,
8.4 In Color LCD Display Replacement

The QES1508-117 is a drop-in replacement for the Fanuc A02B-0120-C131#TAR 8.4-Inch LCD Monitor used in all GE Fanuc Series 18-T Controls.

At Dynamic Displays we are dedicated to speed & honesty with our EZ-Quote system.


GE Fanuc A02B-0120-C131/TAR LCD monitor replacement

The QES1508-117 is a drop-in replacement for the Fanuc A02B-0120-C131/TAR 8.4-Inch LCD Monitor used in all GE Fanuc Series 18-T Controls. The rugged, open frame chassis of this high-performance, 8.4-inch Active Matrix color TFT LCD monitor is designed to drop right into the mounting holes of the original Fanuc 8.4-inch LCD monitors, making it unnecessary to replace or make expensive modifications to the original FANUC CRT monitor chassis. The CCFL backlights on older LCDs are inherently unreliable, and in the event of failure, your GE Fanuc Series 18-T Controls can be down for days at a time when you need it the most—if and when this happens, installing Dynamic Displays’ model QES1508-117 LCD with LED backlight upgrade is the fastest and most reliable way to get your machine controller up and running. In addition, the LED backlight of the QES1508-117 provides more brightness than the old CCFL backlight and, more importantly, has a longer lifespan. If you are uncomfortable with the prospect of upgrading the LCD of your Fanuc 18-T Control yourself, Dynamic Displays can perform the retrofit at no cost to you. Just give us a call at 715-835-9440, or email us at [email protected].

Fanuc A02B-0120-C131/TAR Replacement Features:

  • Replaces GE FANUC A02B-0120-C131/TAR 8.4-inch LCD monitor
  • Rugged Cold Roll Steel Open-Frame Chassis
  • Mounts into the original mounting holes of Fanuc P/N: A02B-0120-C131/TAR
  • Designed for Fanuc Series Control Panels
  • 24 Volt Input Voltage
  • Honda 20 Pin input video connector – PCR-E20LMD+
  • 8.4-inch color SVGA TFT LCD with reliable LED Backlight
  • High Brightness – 450 Cd/M2 Typical
  • High Contrast – 600:1 Typical

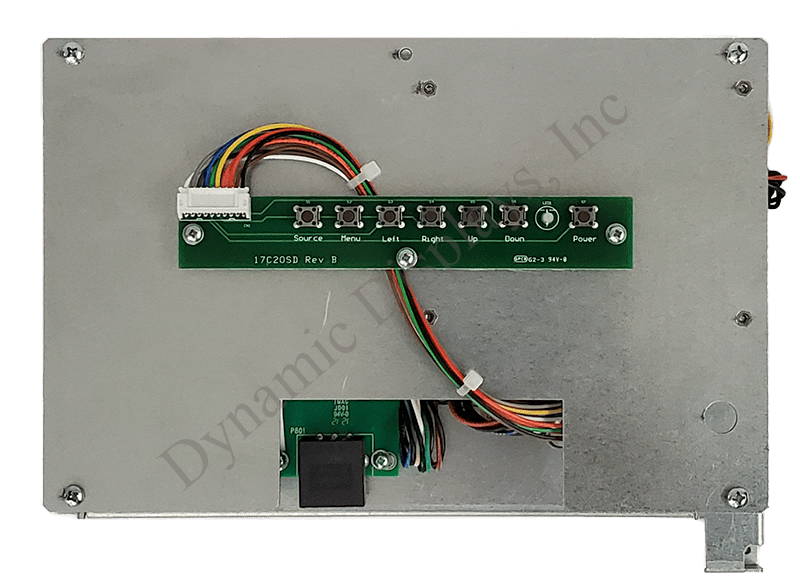

GE Fanuc A02B-0120-C131TAR Upgraded with Dynamic Displays Monitor.

GE Fanuc A02B-0120-C131TAR Upgraded with Dynamic Displays Monitor.

Equivalent Models: A02B-0120-C131/TAR, A02B0120C131/TAR, A02B-0120-C131, A02B0120C131

Follow this link to see a searchable list of Industrial Replacement Monitors

QES1508-117 Series Features

  • Replaces GE FANUC A02B-0120-C131#TAR 8.4-inch LCD monitor
  • Mounts into the original mounting holes of Fanuc P/N: A02B-0120-C131#TAR
  • Designed for Fanuc Series Control Panels
  • Honda 20 Pin input video connector – PCR-E20LMD+
