Fanuc A61L-0001-0072 Replacement Monitor

Model QES1508-107 8.4 In LCD replaces Fanuc Monitors A61L-0001-0072 or Matsushita TR-9DK1-A, 9 In CRT Monitors used in Fanuc 6, 6L, and 6M.

---

GE Fanuc A61L-0001-0072 Replacement Monitor, 9 In  CRT

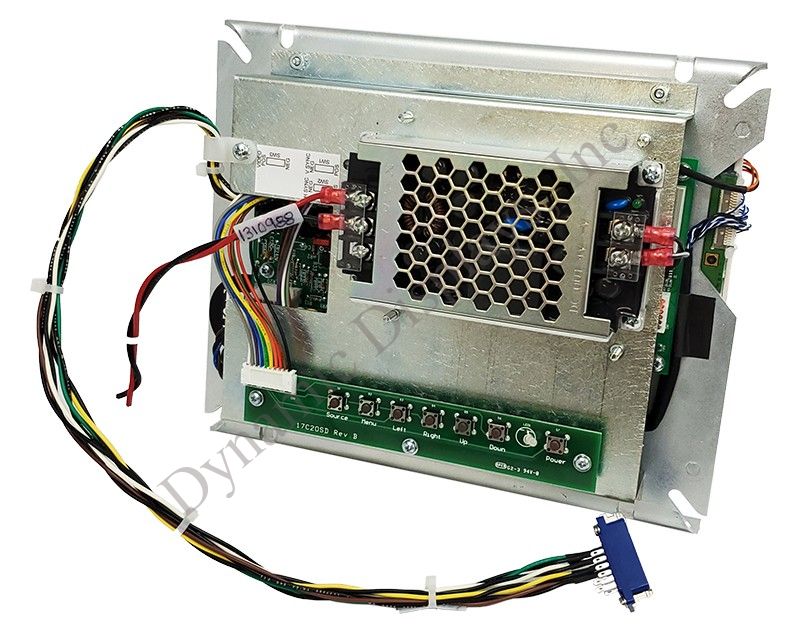

Our QES1508-107  8.4" LCD display is a direct upgrade for the 9 inches Fanuc A61L-0001-0072 monitor used in Fanuc 6, 6L, and 6M Series CNC Machine controls.  The rugged, open-frame steel chassis of this high-quality LCD display is designed to drop right into the mounting holes of the original 9-inch monochrome CRT, making it unnecessary to replace or make expensive modifications to the original CRT monitor chassis. Our QES1508-107 accepts the TTL video signals used in Fanuc 6, 6L, and 6M CNC Machine control with no need for signal adapters of any sort.  This unit has been optimized to operate at the FANUC monitor timing but also operates with a variety of other TTL legacy monitor timing as well. Our QES1508-107 is a high-performance, 8.4-inch Active Matrix TFT LCD monitor with an LED Backlight featuring 600:1 contrast ratios and 450 nits brightness, making it an excellent replacement monitor for your legacy monochrome 9" CRT display. Fanuc A61L-0001-0072 Replacement Features:

• Mounts into the original mounting holes of Fanuc Matsushita Fanuc A61L-0001-0072
• Matsushita Fanuc A61L-0001-0072 CRT Replacement Monitor
• Interface Signal Connectors: Honda #MR-20M
• Operating Voltage: 9-36 VDC
• Rugged Cold Roll Steel Open-Frame Chassis
• 8.4-Inch SVGA TFT LCD with reliable LED Backlight
• Input Video: TTL Monochrome with Separate Sync
• LCD Display Area: 6.7” (H) x 5” (V), 8.4-Inch Diagonal
• High Brightness – 450 Cd/M2 Typical
• High Contrast – 600:1 Typical

Equivalent Models: Fanuc A61L-0001-0072, Fanuc A61L00010072, Matsushita TR-9DK1-A, MatsushitaTR-9DK1_A, Matsushita TR-9DK1A, Matsushita TR9DK1A, Matsushita TR-9DK1, Matsushita P/N: TBM80077
