Fanuc A02B-0092-C084,
9 In Color CRT Display Replacement

Model QES1508-070 Legacy 8.4 In LCD replaces Fanuc A02B-0092-C084, 9In RGB CRT Monitor used in Fanuc Series Controls.

At Dynamic Displays we are dedicated to speed & honesty with our EZ-Quote system.

GE Fanuc A02B-0092-C084, 9 In Color Display Replacement

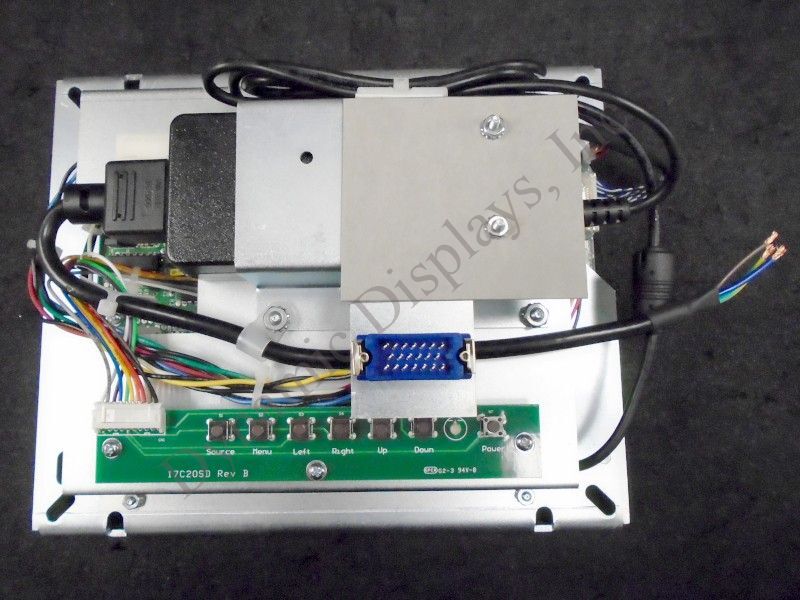

QES1508-070 is a high performance, 8.4 inch Active Matrix color TFT LCD monitor designed to be a drop-in replacement for the Fanuc A02B-0092-C084 9-Inch LCD Monitors used in all Fanuc Series, O-C and 0M Controls. The rugged, open frame chassis is designed to drop right into the mounting holes of the original Fanuc 9 inch CRT monitors, making it unnecessary to replace or make expensive modifications to the original FANUC CRT monitor chassis.

The QES1508-070 accepts the RGB (Red-Green-Blue) TTL video signals used in 9 inch shop floor terminal control consoles for the original  A02B-0092-C084 FANUC monitor with no need for signal adapters of any sort. This unit has been optimized to operate at the Fanuc Series, 0M and 0-C monitor timing but also operates with a variety of other TTL legacy monitor timing as well.

Featuring 600:1 contrast ratios and 450 Cd/m2 brightness, the rugged QES1508-070 RGB LCD TFT display not only replaces your legacy FANUC CRT display, but is an excellent replacement monitor for other legacy 9-inch color TTL CRT displays.

QES1508-070 Series Features

  • Replaces Fanuc A02B-0092-C084 9-inch monitor
  • Designed For Fanuc Series Control Panels
  • 8.4 inch color SVGA TFT LCD with reliable LED Backlight
  • RGB TTL video Input meets Fanuc 15 Series, 0-C, 0TC, OMC and 0-C Control timing
  • Hirose (Honda) 20 Pin input video connector
  • Rugged Cold Roll Steel Open-Frame Chassis drops directly into 9" CRT mounting holes
  • High Brightness – 450 Cd/M2 Typical
  • High Contrast – 600:1 Typical
  • Universal Power Supply with VESA Power Management

Other Options Include

  • Anti-Reflective Protective Faceplate option
  • Strengthened Glass Protection Option
  • Wireless Remote Control Option
