Elston DM30-07BO-575-A31 6″ CRT Monitor Replacement

Model QES1506-014 5.7 inch LCD replaces Elston DM30-07BO-575-A31 6 inch monochrome CRT monitors in Canberra 2404 Alpha/Beta/Gama systems.

---

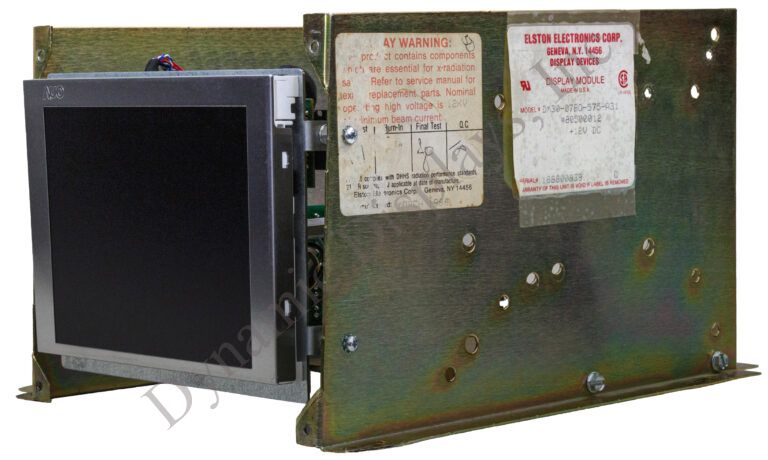

Elston DM30-07BO-575-A31 6" CRT Monitor Replacement

Dynamic Displays Model QES1506-014 5.7-inch LCD directly replaces the Elston DM30-07BO-575-A31 6-inch monochrome CRT monitors used in Canberra 2404 Alpha/Beta/Gama radiation monitoring systems. This rugged LCD mounts to the chassis of your old CRT monitor and uses the same 10-pin edge-card video/power connection, making upgrading a breeze. Proudly made in the heartland of the USA, with +12Vdc power input and full video compatibility, contrast ratios of 800:1, and brightness levels of 700 cd/m2, a long-life (>50,000 hours) LED backlight, the QES1506 Series color LCD TFT display is a simple, cost-effective way to extend the useful life of your existing radiation monitoring equipment. Replace the old, low-performance Elston DM30-07BO-575-A31 6-inch CRT monitor with Dynamic Displays' reliable, affordable QES1506-014 5.7-inch LCD Flat Panel display today.

The Dynamic Displays Advantage

• Made in the USA: Our products are designed and manufactured in Eau Claire, WI, USA.
• Our products include a 2-year warranty.
• 100% satisfaction guaranteed.
• Proud and proven: We have been in business since 1991 as an industrial manufacturer with a proven, tangible track record.
• Human interface: Our bilingual (English/Spanish) technical support staff is highly responsive and based in the United States

We've made installing the QES1506-014 8.4-inch LCD monitor into your existing Canberra 2404 radiation monitoring system extraordinarily easy.

• First, disconnect and remove the Elston DM30-07BO-575-A31 monitor from the Canberra 2404 system.
• Second, remove the old 6-inch CRT and electronics from the old chassis.
• Third, bolt the QES1506-014 5.7-inch LCD into the empty 6-inch CRT mounting holes.
• Fourth, re-install the monitor chassis into the Canberra 2404 cabinet.
• Fifth, re-attach the 10-pin edgecard video/power connection.

Congratulations! You're done! All that's left to do is power your equipment up and see the bright, crisp image now being displayed. The LCD should auto-adjust to present the correct image. If the LCD needs further adjustment, we've provided on-screen display adjustment capability.

Model QES1506-014 replaces the obsoleted model QES1505-014.
