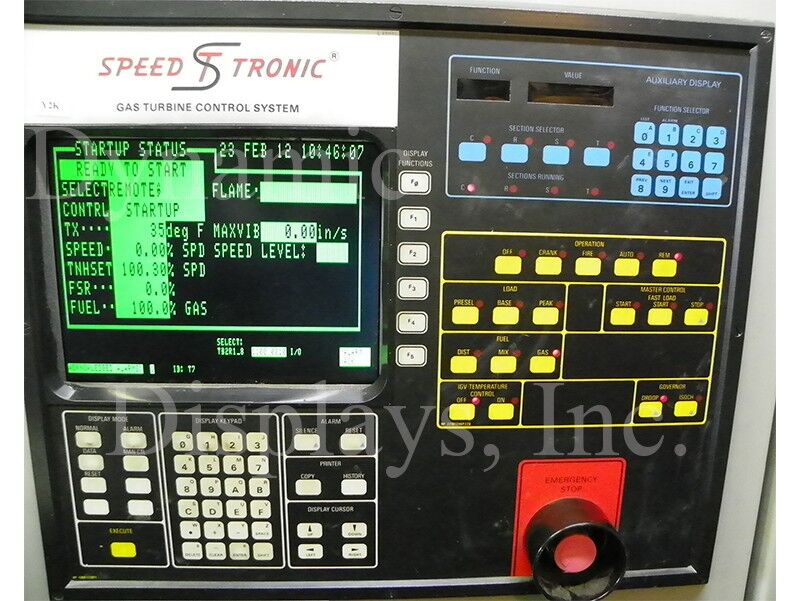

Replacement for GE Mark IV Speed Tronic - Gas Turbine Control

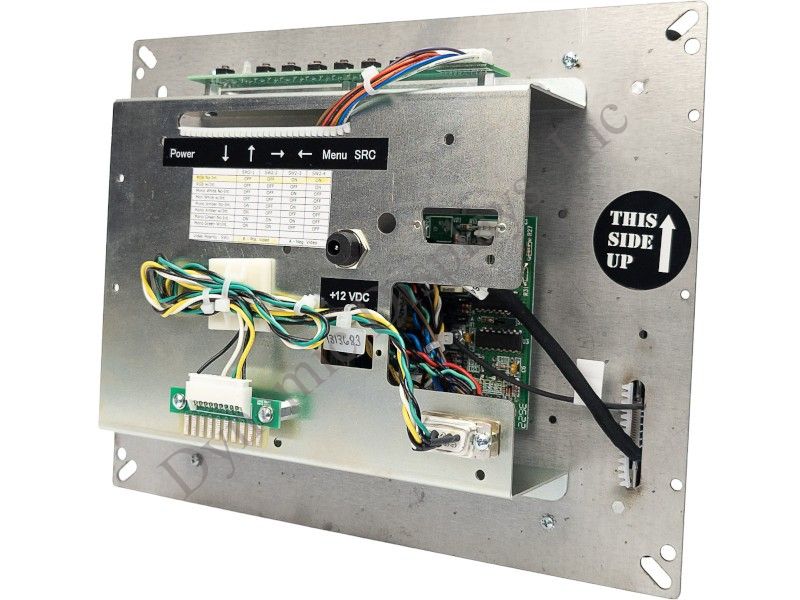

GE 277A5758G2 12-inch Monochrome CRT Monitor replacement LCD Rear View

Display Tech DS3000-340A 12 inch Mono CRT Display Replacement

Model QES1510-026 10.4 In LCD replaces Display Technologies DS3000-340A 12 In Monochrome CRT Displays used in GE Mark IV Speedtronic controls.

GET EZ QUOTE

At Dynamic Displays we are dedicated to speed & honesty with our EZ-Quote system.

When the Display Tech DS3000-140A or DS3000-340A 12-inch monochrome monitor in your GE Mark IV Speedtronic control needs replacing, please consider upgrading to brand new, reliable, Dynamic Displays Model QES1510-026 Industrial LCD monitor rather than resorting to refurbished old CRT replacements or cheap Chinese displays with unknown warranties and no support. This rugged LCD upgrade display attaches easily to the 9-inch CRT mounting holes of your existing monitor frame and is plug-and-play compatible with the original 12 inch 110° CRT Display.  In addition, this new 10.4-inch LCD monitor 10-pin edge card video connector mates easily with your existing video cable and it comes with pigtail power input connections with circuitry and firmware engineered specifically for plug and play in the GE Mark IV Speed-Tronic - Gas Turbine Control System. Just plug the LCD display in and you are up and running. Upgrading your legacy Display Technologies DS3000 Series CRT monitor with the QES1510-026 LCD Replacement Monitor will increase productivity, reduce waste, eliminate downtime, and extend the life of your automation investment. With brighter, sharper, and crisper images provided by the new LCD, your operators will no longer need to squint to view dim or out-of-focus screen data, resulting in fewer operator errors and less wasted time and materials. With solid-state electronics and a long-lived LED backlight, downtime due to aging monitor repairs is no longer a concern and you can continue to rely on your GE Mark IV Speedtronic control with minimal expense and effort. We've also added color selection, so you can choose between green, amber or white images. The list below represents legacy products that our QES1510-026 LCD replaces:
  • Allen Bradley 1784-T36
  • Allen Bradley 7300-ACRT
  • Ball TV-120
  • Kristel 25RE-A42
  • Display Technologies DS3000-140A
  • Display Technologies DS3000-340A
  • Motorola DS3000-140A
  • Motorola DS3000-340A
https://dynamicdisplay.com/wp-content/uploads/2017/02/QES1510-026-Interface.jpg?v=1755266113 Equivalent Model Numbers: DS3000140A, DS3000_140A, DS3000 140A, Motorola DS3000140A, Motorola DS3000_140A, Display Tech DS3000 140A, DS3000340A, DS3000_340A, DS3000 340A, Motorola DS3000340A, Display Tech DS3000_340A, Motorola DS3000 340A
Brochure
2D Drawing
Contact Us

QES1510-026 Series Features

  • Replacement LCD for Motorola DS3000-140A and DS3000-340A 12" monochrome CRT Monitors
  • Replacement LCD for Display Tech DS3000-140A and DS3000-340A 12" monochrome CRT Monitors
  • Drop in replacement for GE Mark IV Speed Tronic - Gas Turbine Control System
  • 10 Pin Edge Input video Connector matches DS3000-140A and DS3000-340A input
  • 110-240VAC Universal Power Supply with VESA Power Management
  • Power Requirements: 110-240VAC @ 1 Amp or 12Vdc @ 3.4A
  • Color Selection between Green, Amber or White images

Other Options Include

  • Anti-Reflective Protective Faceplate
  • Strengthened Glass Protection
  • Amber or white color
