Display 2000 TC09M16C0M0 Replacement LCD

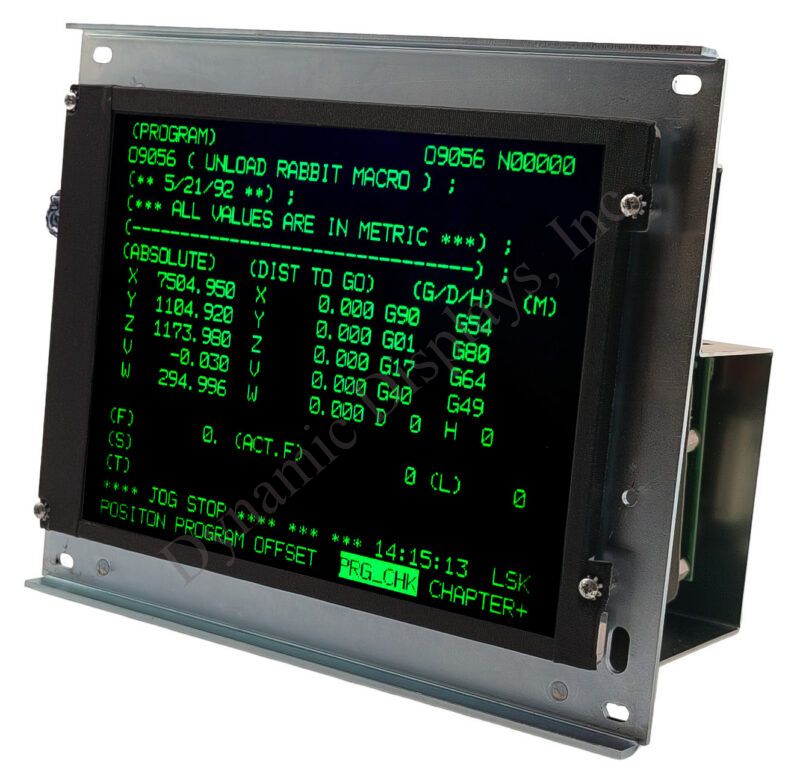

Model QES1508-097 8.4-inch LCD replaces Display 2000 TC09M16C0M0 9-inch monochrome CRT monitors in Charmille RoboForm 200 EDM controls

---

Model QES1508-097 8.4-inch LCD replaces Display 2000 TC09M16C0M0 9-inch monochrome CRT monitors in Charmille RoboForm 200 EDM controls.

When the Display 2000 TC09M16C0M0 9" monochrome CRT monitor in your Charmille RoboForm 200 EDM Control fails and needs replacing, why not try something new? Why continue using old, re-furbished monitors guatanteed to fail a few days after their limited 30 or 90-day warranties expire? Why take a chance on cheap displays with unknown warranties and no support from Chinese companies that may vanish next month? Why trouble yorself with splicing wires and changing connectors. Easpecially since Dynamic Displays has a solution for you! Our Model QES1508-097 8.4-inch LCD is a direct replacement for the Display 2000 TC09M16C0M0 9" green-phosphor CRT monitors used in Charmille RoboForm 200 EDM CNC Controls. This rugged, industrial-grade LCD with its long life (>50,000 hours) LED backlight will provide the simple, reliable, cost-effective, easy-to-install CRT replacement you are looking for. Proudly manufactured in Eau Claire, Wisconsin, and backed by a 2-year factory warranty and bi-lingual (English / Spanish) customer support, Dynamic Displays' Model QES1508-097 8.4 inch LCD is easy to install and accepts the +12VDC power and monochrome composite video input with the same 10-pin edge-card connection connector as your old Display 2000 TC09M16C0M0 9-inch monochrome CRT display.

Upgrading the Display 2000 TC09M16C0M0 9-inch CRT monitor with model QES1508-097:

You can install the QES1508-097 8.4-inch LCD monitor into your existing Charmille RoboForm 200 EDM control with just a few easy steps.

• First, disconnect disconnect the 10-pin edge-card video  / power input connection and remove the Display 2000 TC09M16C0M0 9-inch CRT chassis from your Charmille RoboForm 200 EDM control.
• Second, remove the old 9-inch CRT and electronics from the Display 2000 TC09M16C0M0's chassis.
• Third, bolt the QES1508-097 8.4-inch LCD into the now-empty 9-inch CRT mounting holes and place the 10-pin edge-card video / power where desired.
• Fourth, mount the upgraded TC09M16C0M0 9-inch CRT chassis back into your Charmille RoboForm 200 EDM control.
• Fifth, re-attach your 10-pin edge-card video  / power cable to the QES1508-097 8.4-inch LCD monitor input connections.

The installation is complete! All you need do next is power your Charmille RoboForm 200 EDM up and see the bright clear images now displayed. The QES1508-097 LCD will auto-adjust to present the correct image. If the image needs further adjustment, we've provided on-screen-display adjustment capability.

The Dynamic Displays Advantage

• Made in the USA: Our products are designed and manufactured in Eau Claire, WI, USA.
• Our products include a 2-year warranty.
• 100% satisfaction guaranteed.
• Proud and proven: We have been in business since 1991 as an industrial manufacturer with a proven, tangible track record.
• Human interface: Our bilingual (English/Spanish) technical support staff is highly responsive and based in the United States

Equivalent Models:

• Omni Vision LP0915GG4-P31
• Kristel 95HS-FD-2
