QES1507-004 6.5-inch LCD reliable, cost-effective, easy-to-install replacement for Computron 115-334 DMC8 7.5-inch CRT monitors
QES1507-004 6.5-in LCD replaces Computron 115-334 DMC8 7.5-in CRT monitor
If you're having problems replacing a failed Computron 115-334 DMC8 7.5-inch CRT Display Module in your CNC machine equipment, we have a solution for you. Our QES1507-004 industrial-grade 6.5-inch LCD provides the simple, reliable, cost-effective, easy-to-install replacement for any Computron 115-334 DMC8 7.5-inch CRT monitor which uses the 115DMX Monochrome CRT Driver Board.
Proudly manufactured in Eau Claire, Wisconsin and backed by a 2-year factory warranty and bi-lingual (English / Spanish) customer support, the Dynamic Displays' Model QES1507-004 LCD module mounts into the 7.5 inch CRT mounting brackets of your Computron 115-334 DMK8's chassis and has the same 10-pin edgecard / IDC 20-pin video connections and 4-pin in-line power connection as the old Computron 115DMX Monochrome CRT Driver Board for amazingly easy installation. No need to cut and splice wires. No need for signal adapters of any sort. No need to modify your chassis.
With 15KHz through 100Khz operation, this unit displays high-quality, high-resolution monochrome images from VGA through XGA resolutions. Standard features such as a multi-language on-screen display, DDC1/2B Plug-and-Play, and wide viewing angle capability make this versatile LCD monitor a good choice for your industrial legacy display systems.
Installing your Computron 115-299 DMC8 Product 115DMX monitor replacement LCD

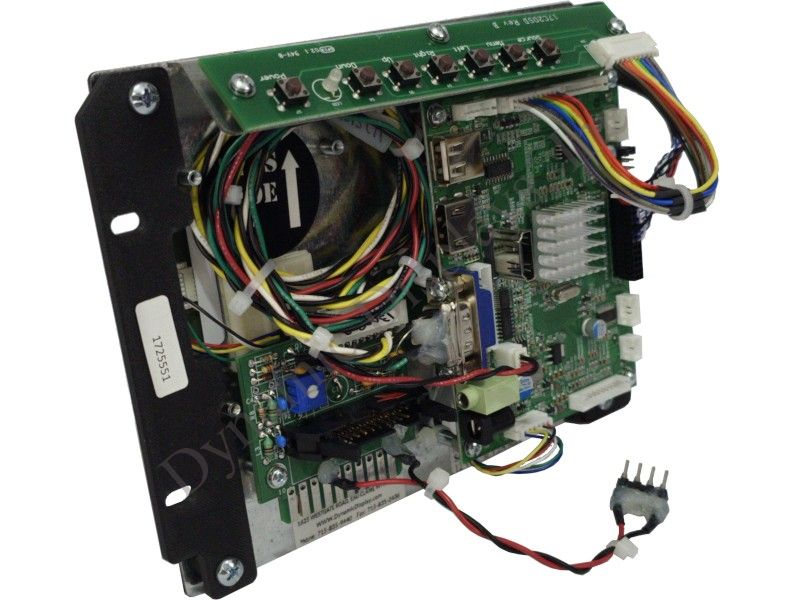

Upgrading your Computron 115-334 DMC8 Product 115DMX monitor with our QES1507-004 6.5 inch LCD display is amazingly easy. Simply remove the 7.5-inch CRT from the chassis, remove all electronic assemblies, then install your new QES1507-004 6.5-inch LCD replacement unit onto the four (4) holes used to mount the old CRT. Reconnect the power and video harnesses back to your system, and it is done. If you are uncomfortable with the prospect of upgrading your Computron 115DMX Product 115-334 DMC8 CRT Monitor yourself, Dynamic Displays can perform the retrofit at no cost to you. Just give us a call at 715-835-9440 or email us at
[email protected].
Equivalent Models:
Computron 115DMX Product 115-334 DMC 8, Computron 115-334 DMC8, Computron 115334 DMC-8, Computron 115DMX-334 DMC8
Similar models using the Computron 115DMX:
115-271B DMC5, 115-271C DMC5, 115-255 DMK9, 115-255B-DMK9, 115-329 DMK, 115-279 DMC5 12CV, 115-316B DMC5
