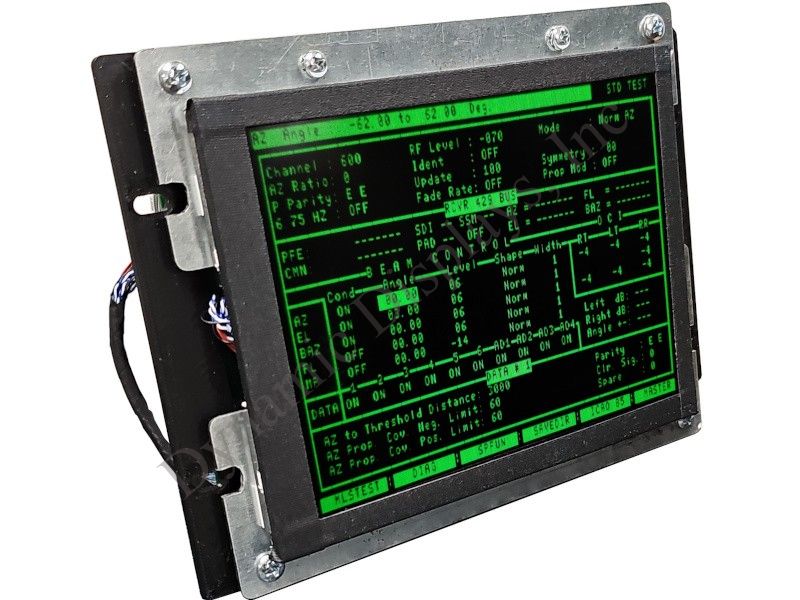

Dynamic Displays’ model QES1507-003 6.5-inch LCD replaces the Computron 115-299 DMC8 7.5-inch monochrome CRT monitors used in IFR MLS-800 Avionics equipment.

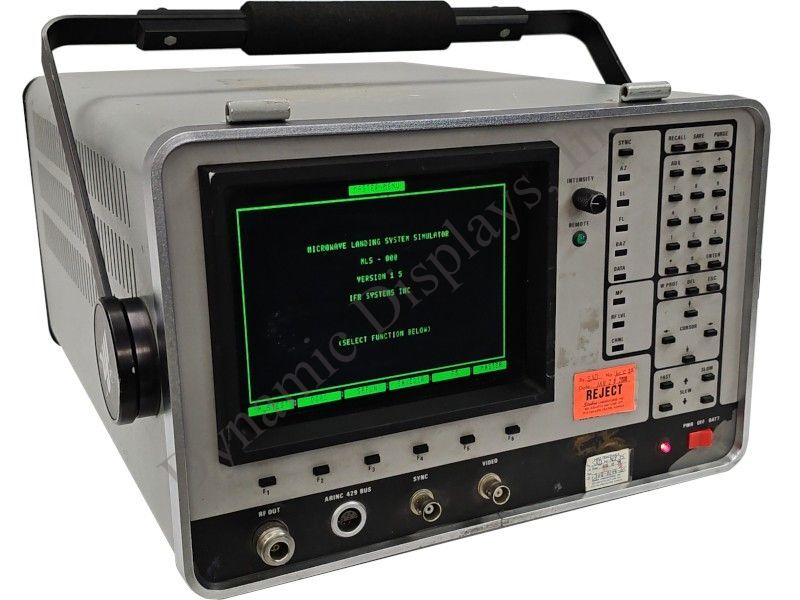

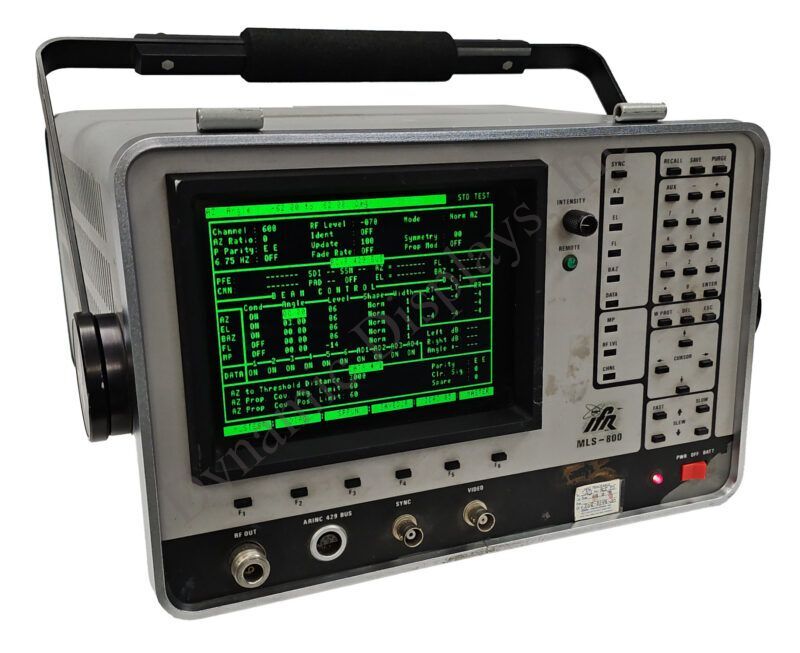

Dynamic Displays' model QES1507-003 6.5-in LCD replaces the Computron 115-299 DMC8 CRT monitor in your IFR MLS-800 Avionics equipment

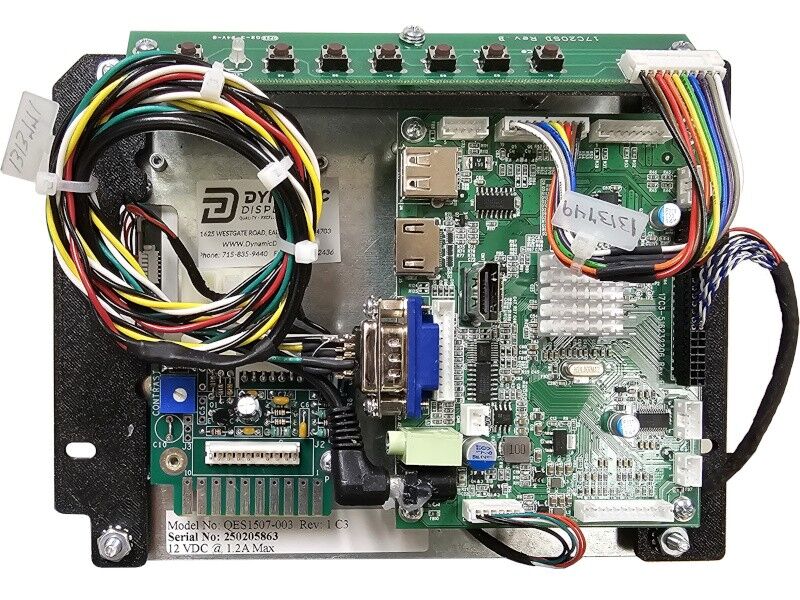

Are you having problems finding a replacement for the failed Computron 115-299 DMC8 7.5-inch CRT Display Module in your IFR MLS-800 Avionics Test Equipment? Proudly manufactured in Eau Claire, Wisconsin and backed by a 2-year factory warranty and bi-lingual (English / Spanish) customer support, the QES1507-003 6.5-inch LCD provides the simple, reliable, cost-effective, easy-to-install CRT replacement you are looking for. Dynamic Displays' Model QES1507-003 LCD module mounts into the 7.5 inch CRT mounting brackets of your IFR MLS-800 test equipment and has the same 10-pin edgecard and 10-pin in-line header video/power connections as the old Computron 115-299 DMK8 CRT display for amazingly easy installation.
The 6.5 inch Industrial LCD Monitor has been designed specifically to replace obsolete Computron Product 115-334 DMC8 7.5 inch monochrome CRT monitors. However, just as the Computron 115DMX CRT drive electronics PCB was used to drive a wide variety of CRTs of various sizes and signal formats, the basic QES1500 Series platform used in this high-performance 6.5 inch Industrial Flat Panel Display is also designed for many other commercial and industrial applications such as a replacement for CNC Control Monitors, ATM Machines, and aviation simulators. With 15KHz through 100Khz operation, this unit displays high-quality, high-resolution monochrome images from VGA through XGA resolutions. Standard features such as a multi-language on-screen display, DDC1/2B Plug-and-Play, and wide viewing angle capability make this versatile LCD monitor a good choice for your industrial legacy display systems.
Upgrading your Computron 115-299 DMC8 Product 115DMX monitor with a QES1507-003 6.6 inch LCD display is straightforward. Simply remove the screws holding the 7.5-inch CRT to the chassis, remove the CRT, remove all CRT electronics assemblies, then install your new 6.5-inch LCD replacement unit on the four (4) holes used to mount the old CRT. Reconnect the power/video harness back to your system, and it is done. If you are uncomfortable with the prospect of upgrading your Computron 115DMX Product 115-334 DMC8 CRT Monitor yourself, Dynamic Displays can perform the retrofit at no cost to you. Just give us a call at 715-835-9440 or email us at
[email protected].
Computron Mod # 115-334 DMC8 Upgrade Features: Open-frame chassis mounts in the Computron 115-299 DMC8 Chasis 6.5-inch Color LCD with reliable LED Backlight Operating Voltage: 12 VDC 10-pin in-line video/power input header 10-pin edgecard video/power input connector High Brightness – 500 Cd/M2 Typical High Contrast – 1000:1 Typical Heavy Duty Cold Roll Steel Chassis. Equivalent Models: Computron 115DMX Product 115-299 DMC 8, Computron 115-299 DMC8, Computron 115299 DMC-8, Computron 115DMX-299 DMC8
