BU-1201D Makino EDNC 64 12 in CRT Monitor

We’ve made upgrading the NEC BU-1201D 12-inch CRT monitor with a Dynamic Displays QES1510-109 10.4″ LCD display easy and straightforward. Simply remove the screws holding the CRT to the chassis, remove all CRT electronics assemblies and install your new replacement unit on the four (4) holes used to maintain the CRT. Reconnect the harness back to your system, and it is done 😊.

At Dynamic Displays we are dedicated to speed & honesty with our EZ-Quote system.


LCD Replacement for NEC BU-1201D Display Monitor used on Makino EDNC 64

If the NEC BU-1201D SA5-005495 12 in CRT Monitor in your Makino EDNC 64 CNC Machine control fails and you need a drop-in replacement monitor quickly, look no further. Dynamic Displays' model QES1510-109 high-performance, 10.4-inch LCD monitor is your turn-key solution. The rugged, open frame steel chassis of this 10.4-inch LCD upgrade mounts right into the mounting holes of the original 12-inch monochrome CRT, making it unnecessary to replace or make expensive modifications to the original NEC BU-1201D Machine chassis. Model QES1510-109 operates with the same power and TTL video signals as original 12-inch CRT Monitor in Makino CNC Machine control, using the same power and video connections with no need for signal adapters of any sort. Featuring a 600:1 contrast ratio and 450 Cd/M2 brightness, this rugged QES1512-109 monochrome LCD is an excellent replacement monitor for your legacy NEC 12-inch CRT display monitor. We've made upgrading the NEC BU-1201D 12-inch CRT monitor with a Dynamic Displays QES1510-109 10.4" LCD display easy and straightforward. Simply remove the screws holding the CRT to the chassis, remove all CRT electronics assemblies and install your new replacement unit on the four (4) holes used to maintain the CRT. Reconnect the harness back to your system, and it is done 😊. If you are uncomfortable with the prospect of upgrading your BU-1201D NEC Monitor yourself, Dynamic Displays can perform the retrofit at no cost to you. Just give us a call at 715-835-9440 or email us at [email protected].

BU-1201D Makino EDNC 64 Monitor Replacement Features:

  • 10.4" LCD replaces 12-inch CRT monitors on Makino EDNC 64 controls
  • LCD frame mounts into the original 12-inch monochrome CRT mounting holes
  • Same video & power connections as the NEC BU-1201D / SA5-005495 Display Monitor
  • Input Video: TTL Monochrome with Separate Sync
  • Input Video: TTL Monochrome with Separate Sync
  • 120 thru 240 VAC Input Power
  • Rugged Cold Roll Steel Open-Frame Chassis
  • High Brightness – 250 Cd/M2 Typical
  • High Contrast – 500:1 Typical

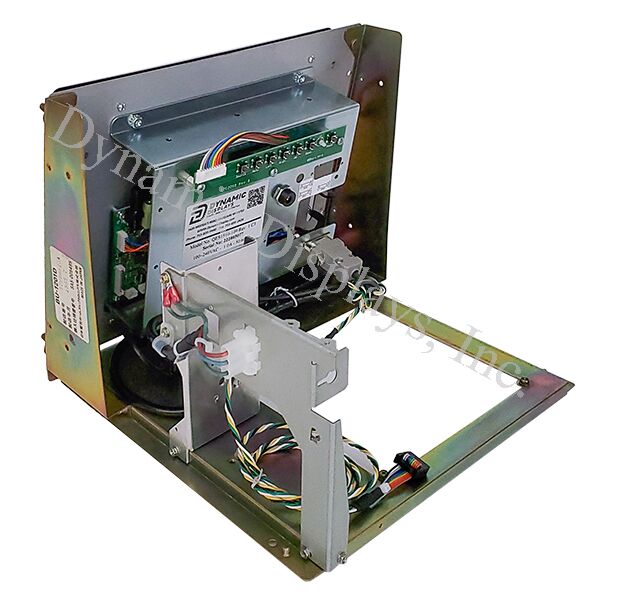

BU-1201D Makino EDNC 64 Machine 12 in CRT Monochrome Monitor Replacement System - QES1510-109

BU-1201D Makino EDNC 64 Machine 12 in CRT Monochrome Monitor Replacement System - QES1510-109

Equivalent Models: BU-1201D, BU1201D, SA5-005495, SA5005495, 57B00013K

FOLLOW THIS LINK TO SEE A SEARCHABLE LIST OF INDUSTRIAL REPLACEMENT MONITORS

QES1510-109 Series Features

  • BU-1201D Makino EDNC 64 Replacement Monitor
  • Mounts into the original mounting holes of BU-1201D.
  • Input Video: TTL Monochrome with Separate Sync
  • Rugged Cold Roll Steel Open-Frame Chassis
  • High Brightness – 250 Cd/M2 Typical
  • High Contrast – 500:1 Typical
