17 In Desktop LCD COTS LCD Display

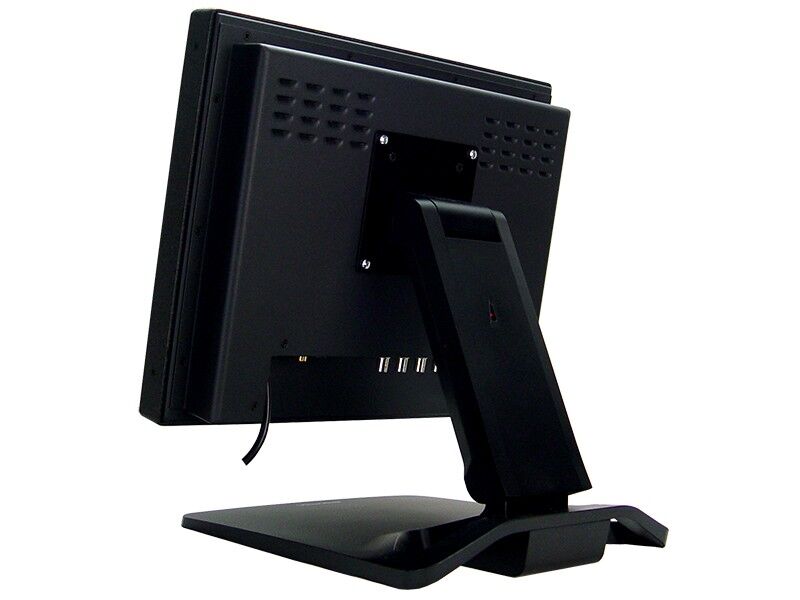

17″ MRD1817C-TP Table Top Series, COTS RUGGED LCD displays

Our 17” COTS Tabletop Rugged LCD Display (MRD-Series) was designed with shock and vibration safeguards provisions for extreme environments and designed to meet a wide variety of applications such as Shipboard, Airborne and Ground Mobile for use in extremely harsh conditions found in many rough COTS Military LCD Display Applications.

GET EZ QUOTE

At Dynamic Displays we are dedicated to speed & honesty with our EZ-Quote system.

Our MRD1817C-TP Rugged 17 inch LCD display monitors (MRD-Series) were designed with shock and vibration safeguards provisions for extreme environments and designed to meet a wide variety of applications such as Shipboard, Airborne and Ground Mobile for use in extremely harsh conditions found in many rough COTS Military LCD Display Applications. This unit is capable of operating with legacy timing such as RS-170 (525 Line) and RS-343 (875-Line) Interlace formats. Also, NTSC/PAL Video (RCA Jack), S-Video (5 Pin Mini-Din) and VGA (HD15-DSub) Standard VESA Input Timings. With the availability of selecting aspect ratios of 1:1 or 4:3 on all video inputs through the use of the On-Screen Display (OSD) Menu. The MRD1817C-TP Rugged 17-inch monitor is a cost-effective LCD display, packaged in a heavy-duty cold roll steel enclosure with the heavy-duty aluminum front bezel, internal rugged construction, and bonded Anti-Reflective protective faceplate glass for superior optical performance and better protection in extreme environments. These features make this 17” COTS Tabletop Rugged LCD Display unit great for use in demanding applications that require graphics, video, and other RGB data on a single, rugged display. Target application platforms for the MRD1817C-TP COTS Tabletop Rugged LCD Military Display Monitors include: Surface Ships Displays, Air Traffic Control, Military Navigation Display Monitor, and Commercial-off-the-shelf (COTS) Military Displays Applications.
Brochure
2D Drawing
3D Drawing
Contact Us

MRD1817C-TP Series Features

  • 17" SXGA High Brightness Color TFT LCD with Solid State LED Backlight Module
  • Extended Operating Temperature Range: -30°C to 60°C
  • High Bright TFT Display, 1500 Nits
  • High Contrast - 1000:1
  • Bonded Anti-Reflective Protective Faceplate Glass for Superior Optical Performance and Better Protection
  • Legacy RS-170 (525 Line) & RS-343 (875-Line) Interlace Formats
  • 75 to 100 KHz - Designed for Slow Scan Signals
  • 5 BNC video input- RGB Sync On Green, RGB Separate Composite Sync or RGB Separate Sync
  • NTSC/PAL (RCA Jack) and S-Video (4 Pin Mini-Din)
  • VGA HD-15D-Sub
  • Standard VESA Input Timings
  • Aspect Ratio: 1:1 or 4:3 (OSD Selection)
  • Convenient Front Controls
  • VESA 100 Standard Mounting
  • Heavy Duty Aluminum Front Panel
  • Heavy Duty Cold Roll Steel Chassis
  • Internal Ruggedized Construction
  • Picture-In-Picture (PIP)
  • Picture-Outside-Picture (POP)
  • 110 / 220 VAC, 12VDC, 24VDC or 28VDC
  • Full-Range Dimming to Black. Auto Ranging
  • Internal AC Power Supply

Other Options Include

  • High Brightness 1,500 Nits TFT LCD Option
  • Anti-Reflective Protective Faceplate option
  • High Brightness TFT LCD Option – 1,500 Nits
  • Wireless Remote Control Option
  • S-Video Option (4 Pin Mini Din)
  • 91 Ohm Video Termination
  • 12VDC, 24VDC or 28VDC Input Voltage
  • 1:1 or 4:3 Aspect Ratio (OSD Selection)
  • Touch Screen: Resistive, Capacitive and SAW Option
  • Front Manual Full Range Brightness and Contrast Control (Dimming)
  • Conformal Coating of Internal Circuit Boards for Enhanced Ruggedization
  • Strengthened Glass Protection Option
  • Resistive and Capacitive Touch Screen Option
