KTV Global Corp BM09DF 9 In Monochrome CRT Monitor Replacement

Model QES1508-088 8.4-inch LCD replaces KTV Global Corp BM09DF2 9-inch monochrome (green) monitors in used in Mitsubishi Mildas Controls.

---

Dynamic Displays Model QES1508-088 8.4-in LCD replaces KTV Global Corp BM09DF2 9-in monochrome (green) monitors in Mitsubish Controls.

If the KTV Global Corp BM09DF2 9-inch monochrome monitor in your Mitsubishi CNC control has failed and needs replacing, why not try upgrading to a brand new, reliable, Dynamic Displays Model QES1508-088 8.4" LCD?. Proudly manufactured in the heartland of the USA, the reliable QES1508-088 8.4-inch LCD monitor replacement offers a cost-effective, simple, plug & play way to extend the useful life of your existing Mitsubishi CNC machine tool. Backed by a 2-year factory warranty and bi-lingual (English / Spanish) customer support, Dynamic Displays' Model QES1508-088 8.4 inch LCD has the same 10-pin edgecard video input format and 110/240 VAC power input as your old KTV Global Corp BM09DF2 9-inch CRT display.

Replacing the KTV Global Corp BM09DF2 9-inch CRT monitor with model QES1508-088:

Installing the QES1508-088 8.4-inch LCD monitor into your existing Mitsubishi control takes just a few simple step.

• First, disconnect and remove the KTV Global Corp BM09DF2 9-inch CRT chassis from your Mitsubishi CNC machine control.
• Second, remove the old 9-inch CRT and electronics from the KTV Global Corp BM09DF2 chassis.

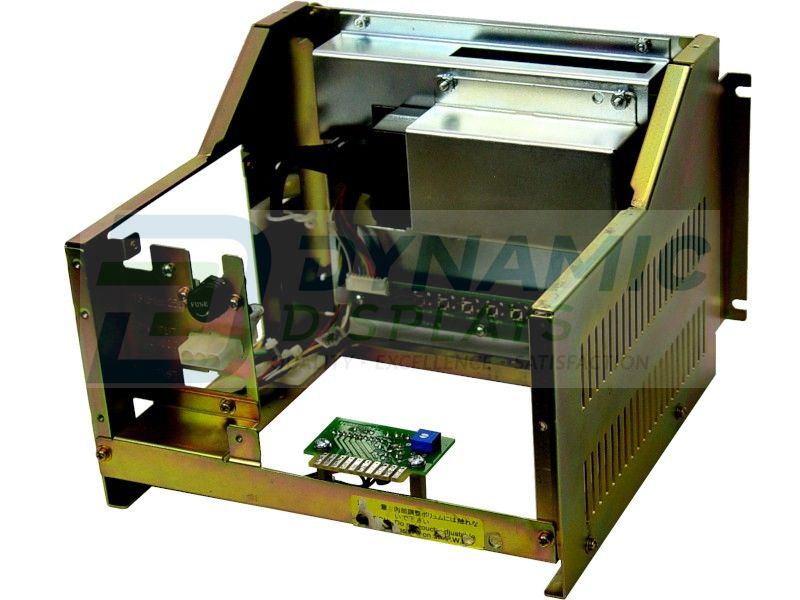

• Third, bolt the QES1508-088 8.4-inch LCD into the now-empty 9-inch CRT mounting holes.
• Fourth, mount the AC power connection, and 10-pin video connection PCB in place.
• Fifth, re-install the BM09DF2 9-inch CRT chassis into your Mitsubishi CNC machine control.
• Sixth, re-attach your video cable to the 10-pin edgecard connector and the 3-pin 110/240VAC AC power connection.

The installation is complete! All you need do next is power your equipment up. The LCD should auto-adjust to present the correct image. If the LCD needs further adjustment, we've provided an on-screen-display adjustment capability. The long life (>50,000 hours) LCD backlight in the rugged, high-performance 8.4-inch Active Matrix Color TFT LCD will provide crisp, clear images for years to come.

The Dynamic Displays Advantage

• Made in the USA: Our products are designed and manufactured in Eau Claire, WI, USA.
• Our products include a 2-year warranty.
• 100% satisfaction guaranteed.
• Proud and proven: We have been in business since 1991 as an industrial manufacturer with a proven, tangible track record.
• Human interface: Our bilingual (English/Spanish) technical support staff is highly responsive and based in the United States

Don't delay! Don't settle for refurbished old CRT replacements or cheap Chinese displays with unknown warranties and no support. Upgrade your old, low-performance KTV Global Corp BM09DF2 9-inch CRT display in your Mitsubishi CNC control with a new, affordable, reliable replacement QES1508-088 LCD Flat Panel display today and extend the useful life of your production equipment for years to come Please also consider Dynamic Displays' many industrial LCD products for your other CNC monitor replacement needs.
